【R2版】T200 Thruster(Basic ESCなし)【最新リビジョン】

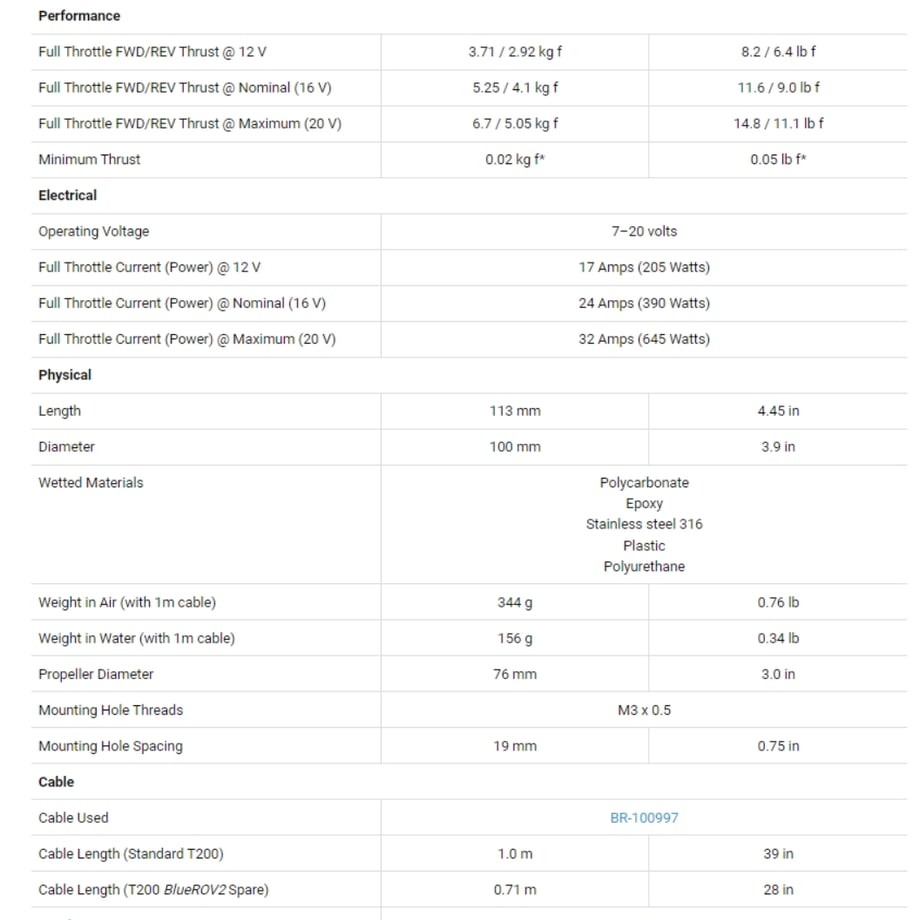

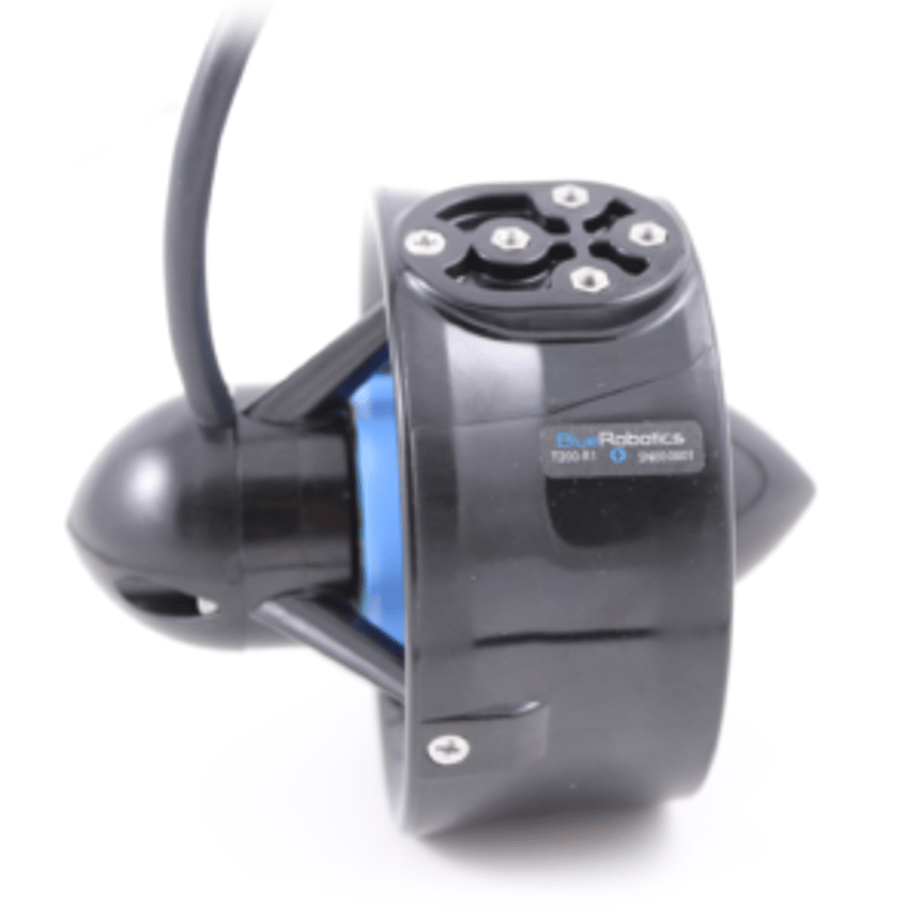

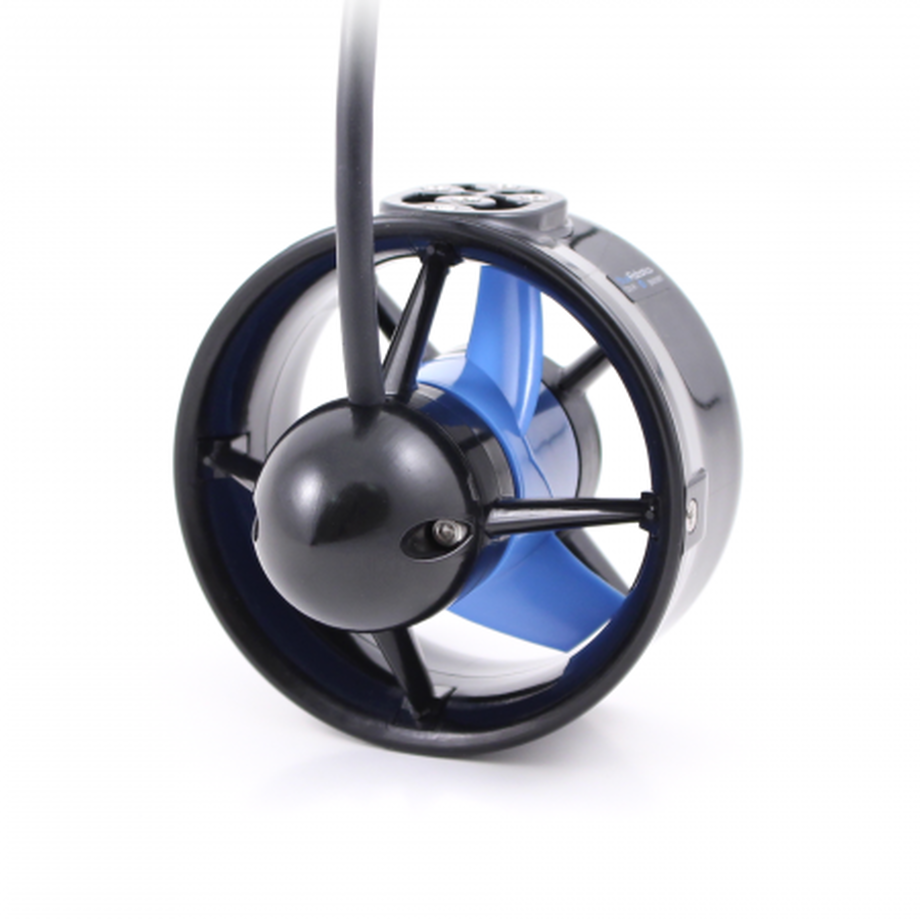

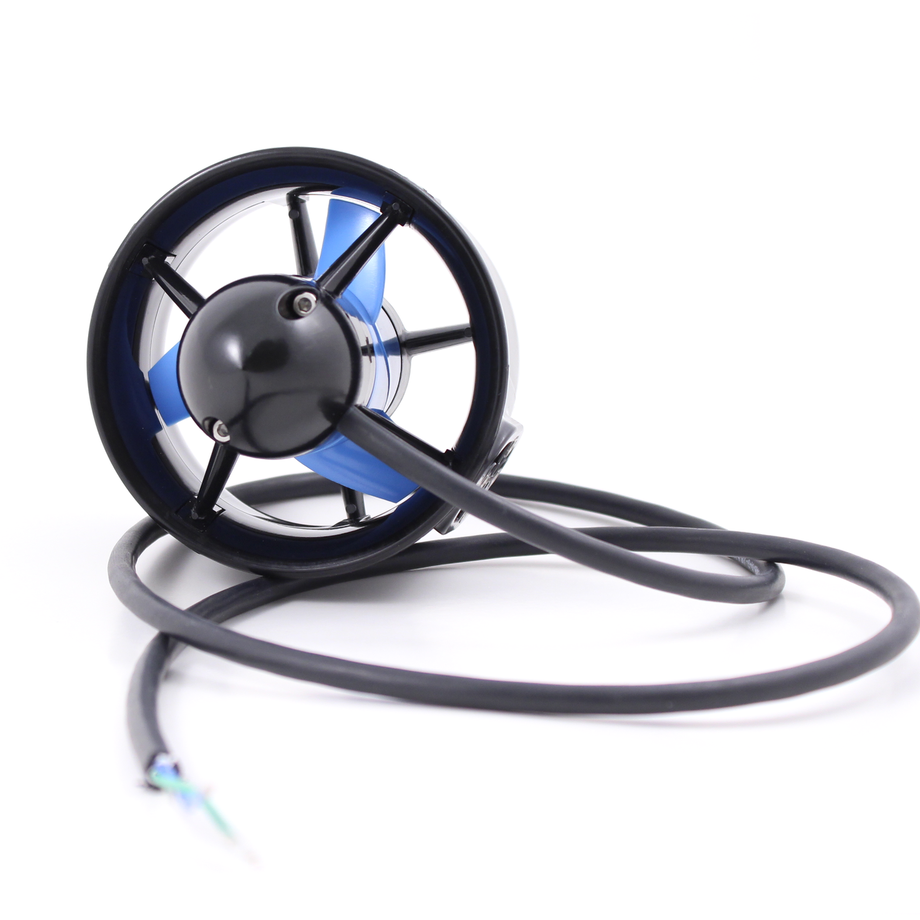

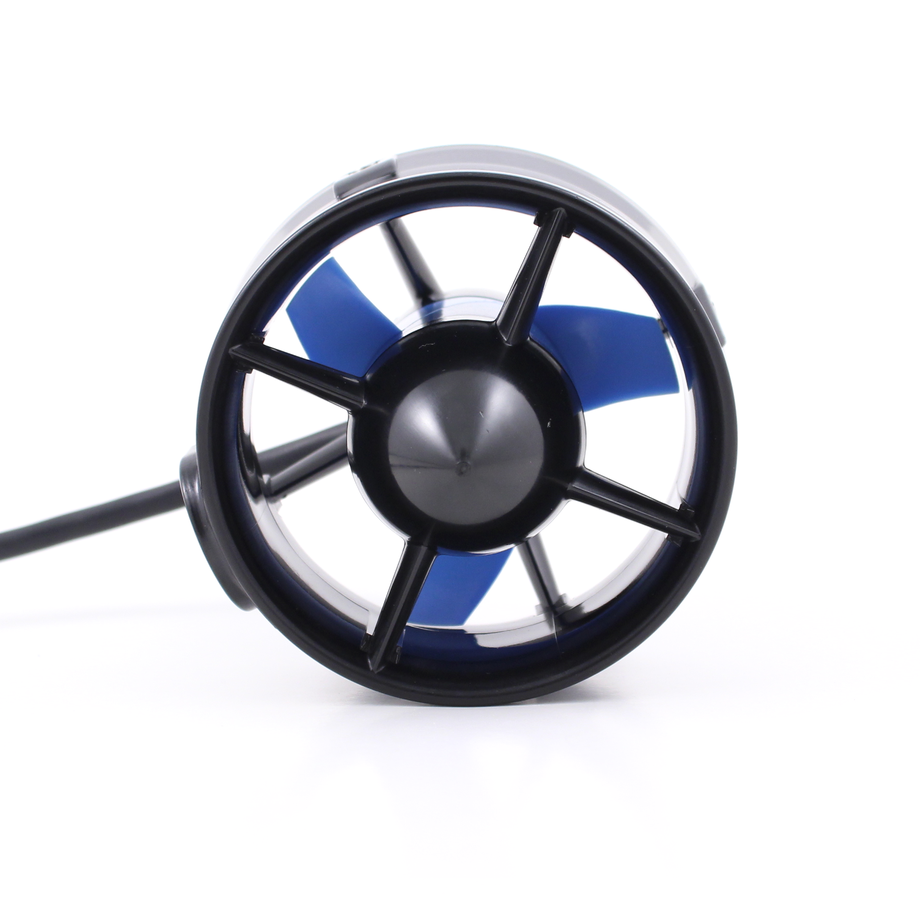

/////////////////////////////////////////////////////////////////////////////////////////////// 水中ドローン社公式ストアにお越しくださり、誠にありがとうございます。 <<産業用水中ドローンの国内トッププロバイダー>> “夢と感動の水中テクノロジー企業”水中ドローン社 <<米Blue Robotics社の日本における正規の販売店なのでご購入後も安心>> ※15時までのご注文確定で当日発送(日曜・祝日を除く)いたします。ご注文急増時は翌日以降の発送となる場合がございます。お急ぎの場合は電話・メールでお問い合わせください。 The T200 Thruster is the world’s most popular underwater thruster for ROVs, AUVs, surface vessels, and more! Its patented flooded motor design makes it powerful, efficient, compact, and affordable. The T200 is in use on thousands of marine robotic vehicles around the world including the BlueROV2. SKU: T200-THRUSTER-R2-RP HS Code: 8501.31.4000 <Product Description> Our T200 Thruster was originally introduced in our 2014 Kickstarter campaign! Since then, it’s become the most popular underwater thruster in the world and there are thousands of them powering all sorts of marine ROVs, AUVs, boats, and even human-carrying vehicles! <Contents> ・1 x T200 Thruster ・1 x Clockwise and counterclockwise propeller <Performance Charts> Click on the legend to hide or show the data set for each voltage. All the raw data and notes on the testing procedure used to generate these charts can be downloaded here: T200-Public-Performance-Data-10-20V-September-2019 (.xlsx) → https://cad.bluerobotics.com/T200-Public-Performance-Data-10-20V-September-2019.xlsx - 3D Models T200-THRUSTER-R1 (.zip) → https://cad.bluerobotics.com/T200-THRUSTER-R1.zip - Revision History 12 February 2021 ・R2 - Initial Release ・Changed thruster cable conductors from 18 AWG to 16 AWG 08 November 2019 ・Changed stator from being epoxy coated to fully potted ・Added cooling holes to propellers 15 September 2019 ・Changed finish of polycarbonate components from glossy to matte 19 September 2014 ・R1 - Initial Release <Guides> Quick Start → https://bluerobotics.com/store/thrusters/t100-t200-thrusters/t200-thruster-r2-rp/ Thruster Usage Guide → https://bluerobotics.com/learn/thruster-usage-guide/ Guide to the Thruster Commanderg → https://bluerobotics.com/learn/guide-to-the-thruster-commander/ <FAQ> ・What is the depth rating of the T200 thruster? →We do not have an official depth rating for our thrusters, as we haven’t found a limit yet. Due to the unique fully flooded design where water freely moves throughout the thruster internals, pressure isn’t much of a concern. There are no air cavities to compress, or seals of any kind. Our thrusters will function well to at least 500m or so. ・Do I need the Thruster Commander to use these? →Not at all! The Thruster Commander is just one possible solution for simple manual controls. Depending on your project, a different control system could be much more appropriate. Please visit the "Learn" section of this product page for more examples of the types of devices that can be used. ・One of my thrusters is much louder than the others or is making a strange sound, is it defective? →It’s perfectly normal to have a loud thruster! Our thrusters use solid plastic bushings (we also refer to these as bearings), which due to the tolerances of the bearings and the metal rotor shafts, can allow the shaft to move slightly in the bearing causing variation in how different thrusters sound. Rest assured, each one of our thrusters is tested multiple times during production to ensure proper operation. The thrusters may be especially loud when they are run dry (in air). Any noise is significantly reduced or eliminated when operated in water. Water serves as a lubricant and coolant for the bearings, allowing smooth operation. Also, be sure not to run the thrusters in air for more than a few seconds as this can permanently damage the thruster by overheating the bearings. ・Do I really need an ESC? I only want to turn the thrusters on and off and don’t need to control the speed. →Yes! You absolutely need an ESC. At the core of a thruster is a brushless DC (BLDC) motor. Like any other BLDC motor, a brushless ESC is required to energize the motor phases in the correct timing to drive the motor. If you try to use a thruster like a regular brushed motor, you’ll just end up with a broken thruster. You can read more about the differences between brushed and brushless DC motors here(https://www.monolithicpower.com/en/brushless-vs-brushed-dc-motors). ・Can I connect more than one thruster to an ESC? →No, one ESC is needed for each thruster. In order to properly drive the motor, the ESC needs to accurately sense the position of the rotor as it is spinning, this is not possible with more than one motor. ・Can I use a voltage higher than 20V DC? →The short answer is no, 20V is the maximum recommended operating voltage for the T200 thruster. Operating at a higher voltage will increase wear and decrease thruster lifespan beyond the level we can officially support, therefore voiding any warranty. You can read the longer, more detailed answer about the effects of using higher voltages here(https://discuss.bluerobotics.com/t/r3-esc-does-it-allow-me-to-use-24-volt-batteries/2084/2). ・What is the lifespan or mean time between failures of the T200? How long can they run continuously? →It depends! Because our customers operate in varying conditions across a wide range of use cases, there is no one expected total lifespan that would apply to all situations. Factors such as water quality, sediment density, particle size and composition, throttle level, operating voltage, etc., all play a large role in affecting thruster longevity. Likewise, these same factors affect how long a thruster can operate in non-stop, continuous use. Anywhere from a few days to several months of continuous usable life are realistic to expect depending on the exact operating conditions. Thrusters do require routine maintenance, and this also affects how long parts will last. If components are well taken care of, they can last for many years. If they are abused and used in harsh environments, parts may wear down faster and will need to be replaced more frequently. For example, iron particles may be pulled from the water and collect inside the rotor on the magnets. This iron should be cleared out regularly to prevent corrosion and allow for proper operation. We have recommended thruster maintenance guidelines in our Thruster Usage Guide to help get the most life out of your thrusters. In case anything does eventually need replacing, replacement thruster components are available here(https://bluerobotics.com/product-category/thrusters/t100-t200-thrusters/). ・What is the water flow rate for the T200? →We do not have the tools to measure this empirically, but with some estimates and a little math we can provide a reasonable theoretical value for the flow rate under ideal conditions: The T200 propeller has a 76.2 mm outer diameter, and a 40 mm diameter central hub. It also has a pitch of 22.5° at 75% of its radius, and spins at about 3075 RPM full throttle 12 V, and 3600 RPM 16 V. Using the pitch and and RPM approximation, this results in a theoretical maximum flow speed of 4.45 m/s at 16 V, and 3.80 m/s at 12 V. The propeller has an area of about 0.00330373 m2. Multiplying these area by the flow speed results in a volume of about 0.014702 m3/s (or 14.7 liters/s or 3.88 gallons/s) at 16 V, and 0.012554 m3/s (or 12.5 liters/s or 3.32 gallons/s) at 12 V. Bear in mind these speeds and flow rates are rough estimates based on some math and not true measurements, you should expect the real number to be lower. However, they should be reasonably accurate for estimation purposes. ///////////////////////////////////////////////////////////////////////////////////////////////
