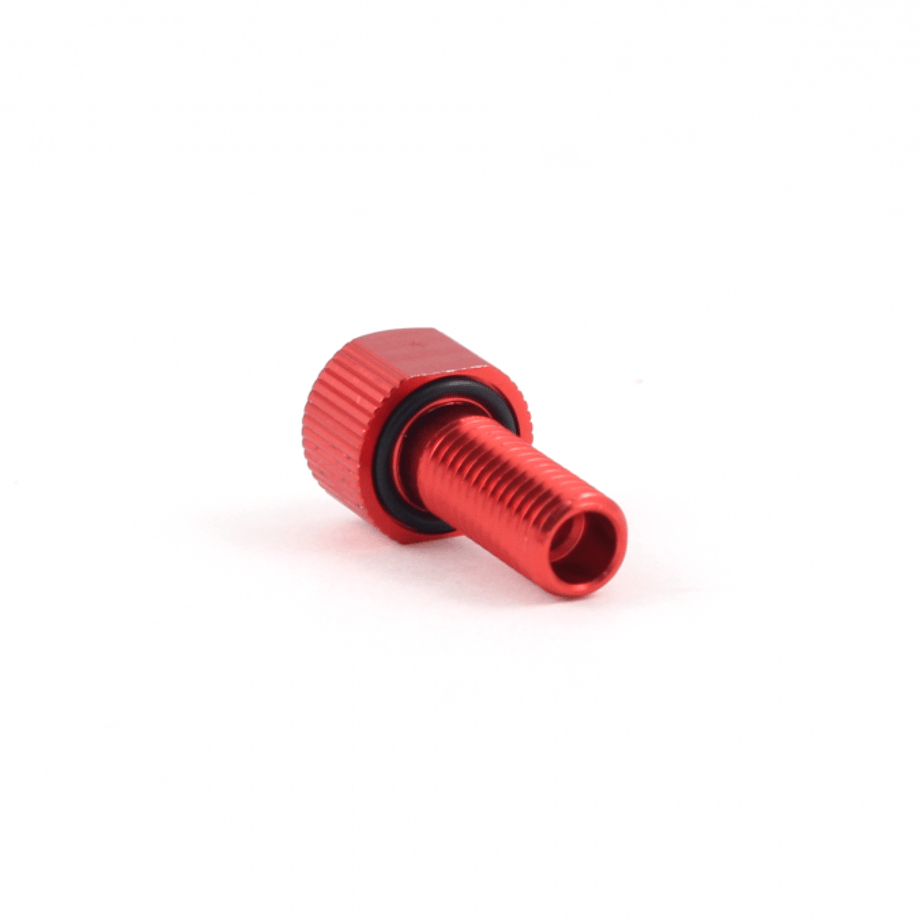

This potted cable penetrator makes a waterproof, high-pressure seal to pass the thruster cable into a watertight enclosure. Each set includes a bulkhead, o-ring, and nut. Some assembly required.
SKU: BR-101086
HS Code: 7616.10.7030
Product Description

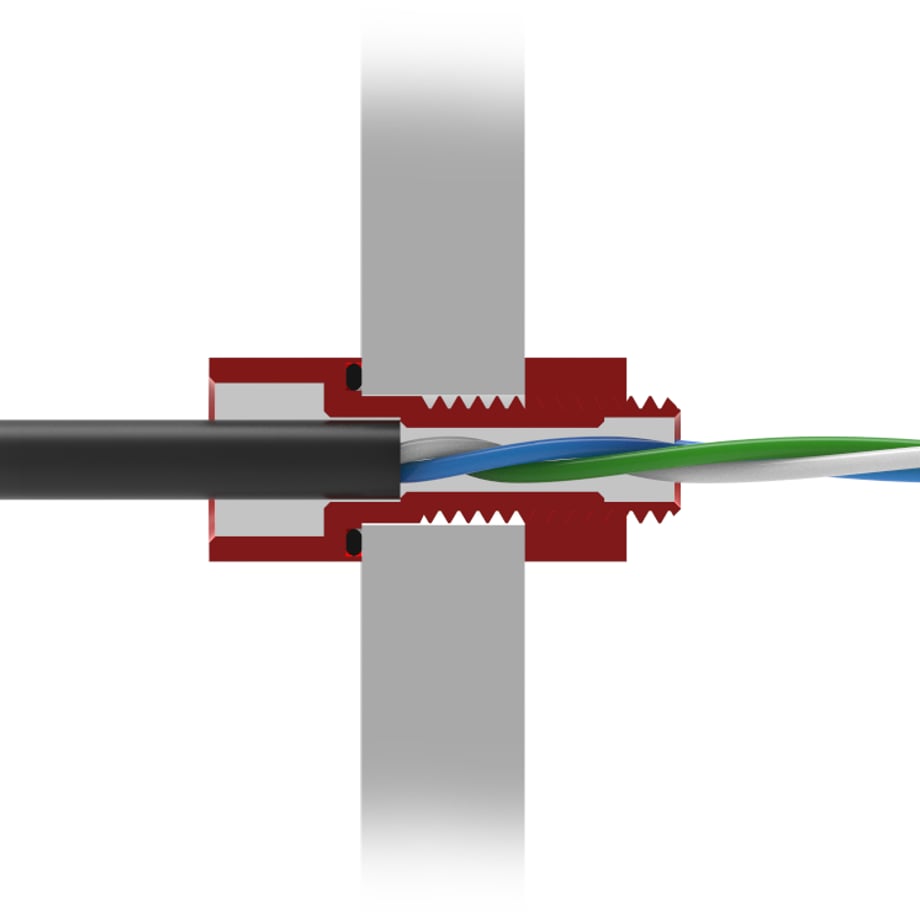

This potted cable penetrator is a simple solution to waterproofing your robot. It’s basically a bolt with a hole that the thruster cable can be glued (potted) into to provide a waterproof connection through watertight enclosures, boxes, panels, etc.
We recommend the Loctite Marine Epoxy and the Potting Kit to complete assembly.
Features
Anodized aluminum construction for corrosion resistance and high strength
Captive O-ring face seal that works on any smooth surface
Wrench flats for easy tightening
Multiple inner diameters to secure the cable jacket but leave room for potting compound
Contents

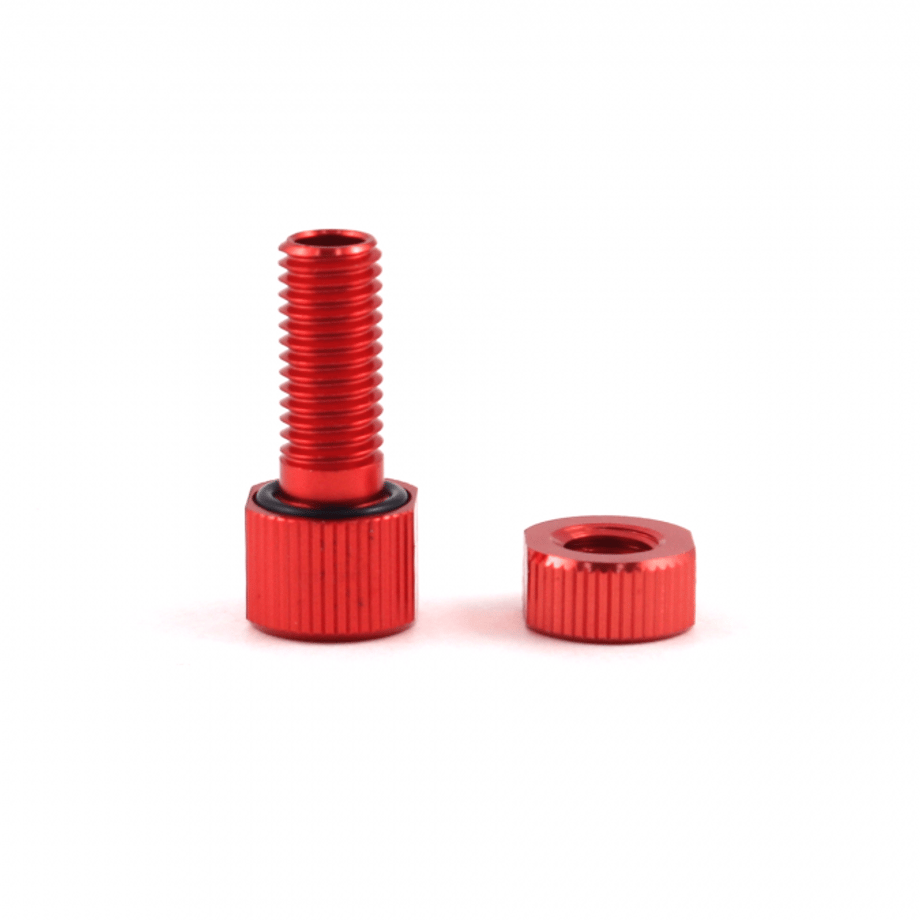

For each unit, the following items are included for the selected cable diameter size and bulkhead size.
1 x Bulkhead
1 x Nut
1 x O-Ring
