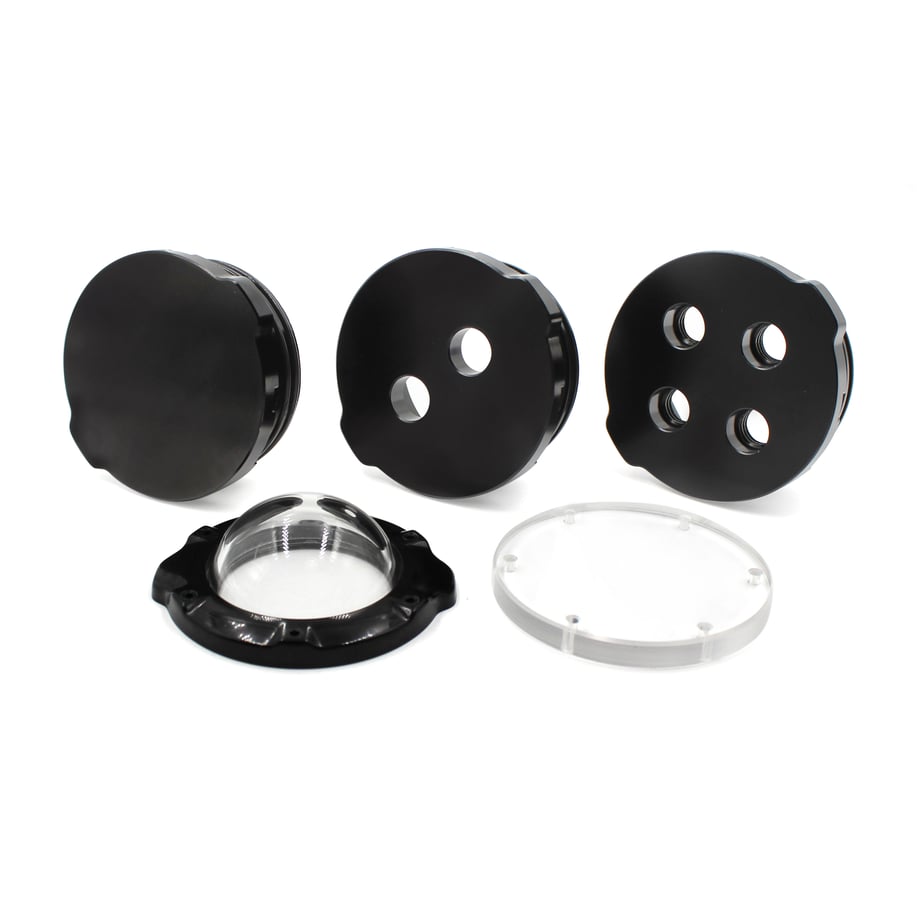

End caps and flange caps for the 2″ Series Watertight Enclosure. These are the second generation of these caps and flange caps with precision machined O-ring interfaces, a locking cord, anti-rotation feature, and optional M10 threaded holes for cable penetrators. Rated to depths up to 950 meters.
SKU: BR-100094
HS Code: 3923.50.00
<Contents>
WTE2
Flange Caps:
1 x Flange Cap (based on selection)
2 x O-ring (-030 size)
1 x 180mm PTFE Locking Cord with Locking Cord Handle
End Caps:

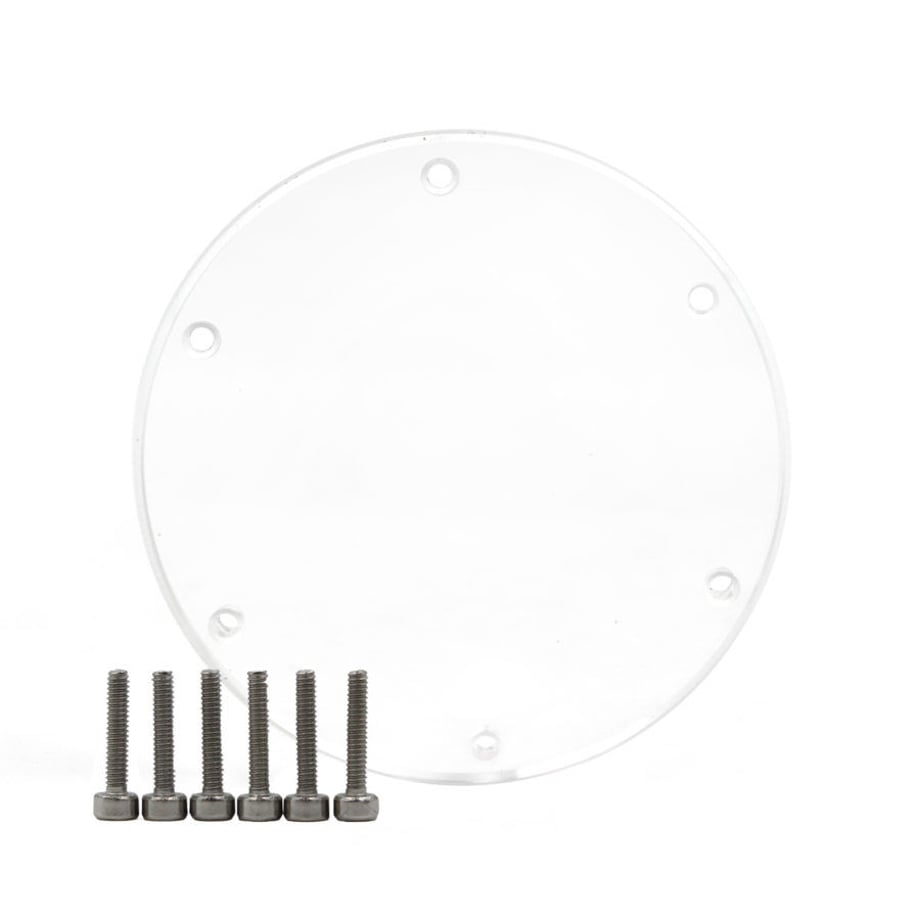

1 x End Cap (based on selection)
6 x M2x10 screws
<Technical Details>
- Documents
Data Sheet(.pdf) → https://bluerobotics.com/wp-content/uploads/2019/11/WTE-DATASHEET-RevC-JAN2024.pdf
【販売部コメント】
SKUが変更になりました。
変更前：WTE2-P-END-CAP-R2-RP
変更後：BR-100094
