【R3版】Lumen海中ライト4灯1連【最新リビジョン】 − Lumen Subsea Light (Pre-Connected Sets) - 4
{{detailCtrl.mainImageIndex + 1}}/5

【R3版】Lumen海中ライト4灯1連【最新リビジョン】 − Lumen Subsea Light (Pre-Connected Sets) - 4



¥60,119 税込

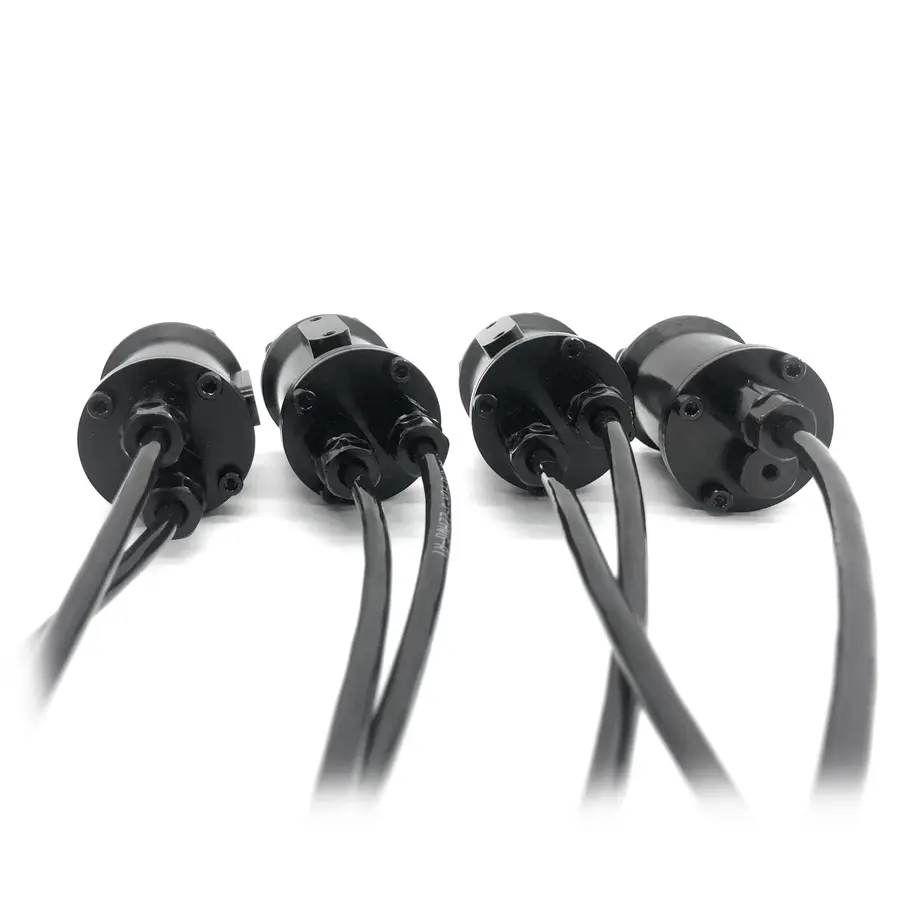

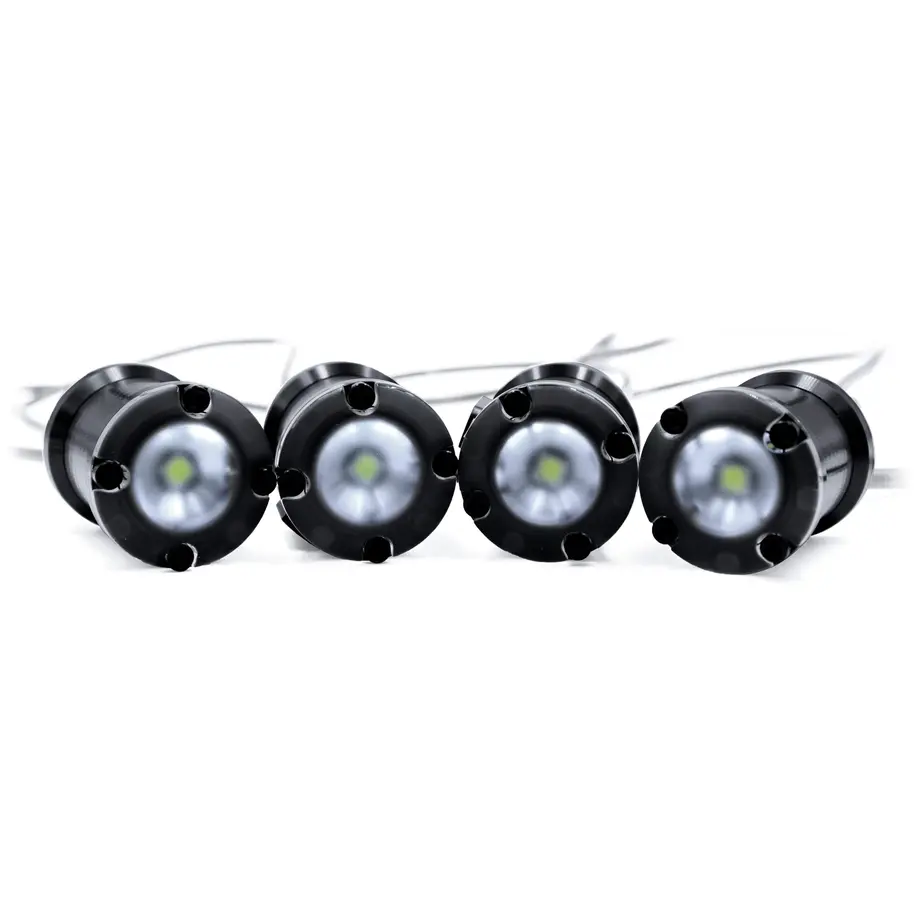

水中ドローン社公式ストアにお越しくださり、誠にありがとうございます。 <<業務グレード水中ドローンの国内トッププロバイダー>> “夢と感動の水中テクノロジー企業”水中ドローン社 <<米Blue Robotics社の日本における正規の販売店なのでご購入後も安心>> ※15時までのご注文確定で当日発送(日曜・祝日を除く)いたします。ご注文急増時は翌日以降の発送となる場合がございます。お急ぎの場合は電話・メールでお問い合わせください。 Summary These are pre-connected (daisy-chained) sets of Lumen Subsea Lights, making it easy to install two or four lights with a single penetrator to the watertight enclosure. All lights will respond to a single signal. See here for the individual Lumen Lights. Product Description The Lumen Subsea Light is a blindingly bright LED light for use on ROVs, AUVs, and other subsea applications. We designed this underwater light specifically for this purpose and it has a few neat features: Fully dimmable control using a PWM servo signal (1100-1900 μs) Simple on/off control with no signal needed Daisy-chainable to connect multiple lights from a single connection Automatic, smart over-temperature compensation for maximum light output and safety in air Built-in mounting holes on the side of the case (M3 thread) Exponential brightness control with much lower minimum brightness output 500m depth rating Using a high-efficiency Cree XLamp MK-R LED, the light outputs over 1500 lumens at 15 Watts – brighter than most car headlights! It has a 135 degree beam angle for wide illumination in front of an ROV. The color temperature is 6200K, similar to most dive lights and ROV lights. In addition to really high brightness, the Lumen is designed for very low brightness output, which is important to be able to illuminate the scene without washing out the colors or brightness. An exponential brightness curve makes it intuitive to use effectively. It’s housed in a rugged hard-anodized aluminum enclosure with two cable penetrators at the rear, allowing it to go to a depth of 500m. The specially designed injection molded acrylic lens ensures a consistent beam angle in both air and water. The case has a built-in mounting bracket with two M3 threaded holes for mounting to your vehicle. For those who want to use the light in other applications, like scuba diving, the light can be operated without a PWM signal. Just connect the yellow signal wire to the power wire and it will turn on! A switch can be used here to make this even more convenient. The light operates on 10-48V inputs and can accept PWM signals from 3-48V! It is compatible with many common boards like the Arduino, Raspberry Pi, and PixHawk. The case warms up to a comfortable 55°C (131°F) when operated in air and stays much cooler in water. Note: We recommend that you don’t look directly into this light to avoid any damage to your eyes! SKU: LUMEN-QUAD-R3-RP HS Code: 9405.40.6000 Contents ・1 x Lumen Subsea Light Set, pre-connected with 4 lights ・8 x Stainless steel M3 mounting screws ・1 x Nut for Pre-installed Cable Penetrator ・1 x O-ring for Pre-installed Cable Penetrator その他ご相談、ご要望等ございましたらこちらからお気軽にお問い合せください。 →https://underwaterdrone.jp/contactus/
