【R3版】200m標準テザーケーブル(BlueROV2対応) − Fathom ROV Tether (ROV-ready) - 200m (656 ft) 【最新リビジョン品】

残り2点

262,295円

送料についてはこちら

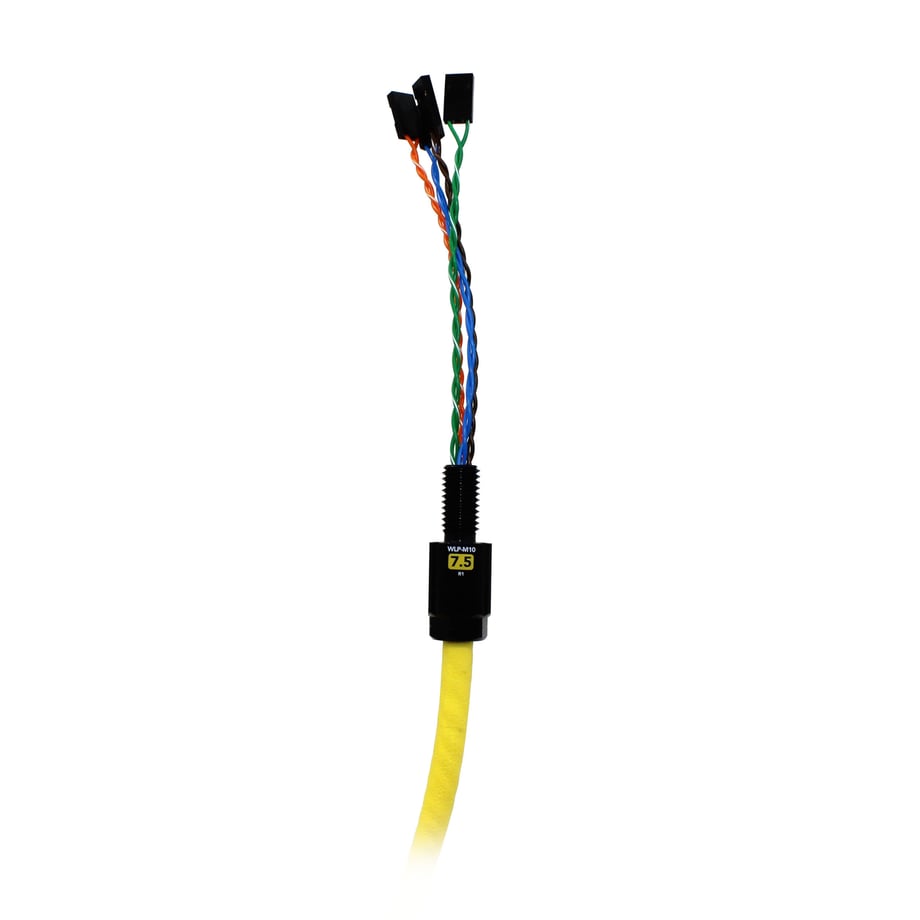

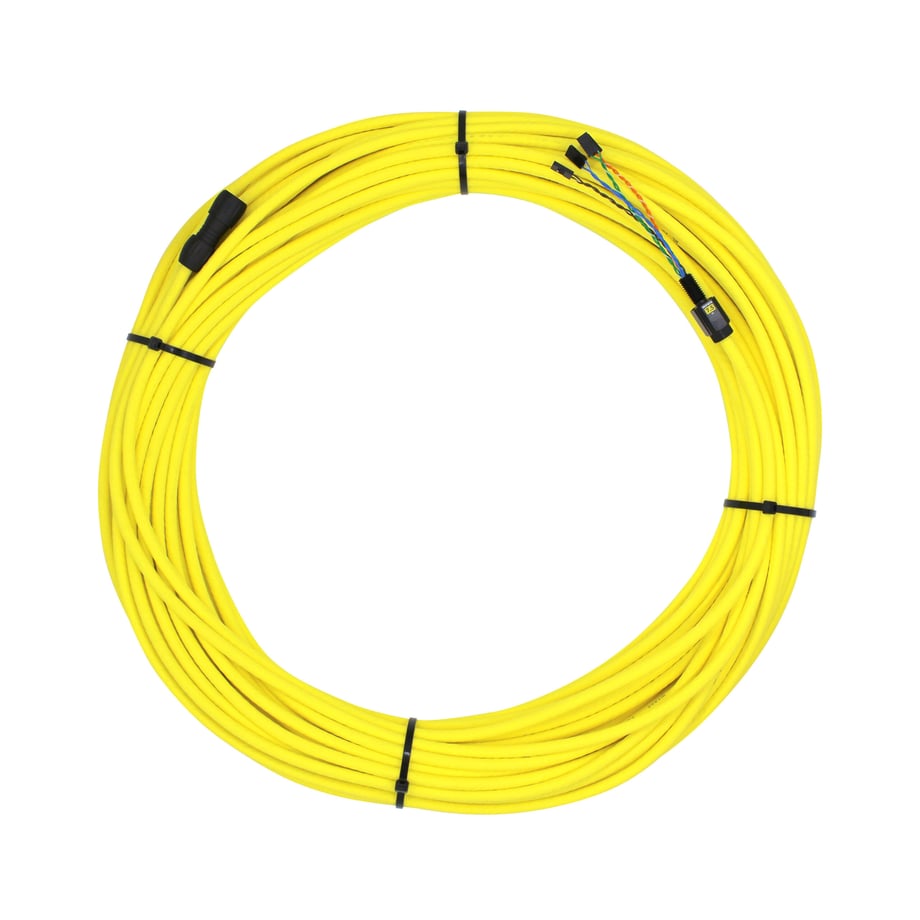

This professional-grade neutrally buoyant tether combines rugged strength and durability with high-performance electrical characteristics for wide-ranging ROV and subsea applications. The 4UTP tether comes with a pre-installed Binder 770 connector and Wetlink Penetrator, while the 1UTP comes with preinstalled cable penetrator and Binder 770 connector. SKU: BR-100862-200 HS Code: 8544.11.00.30 Product Description A note about the communication’s length: Blue Robotics has conducted ranged communications testing and found that 300m is the maximum communications length for the Standard Fathom Tether and 200m is the maximum communications length for the Slim Fathom Tether. We do not manufacture ROV-ready tethers in lengths longer than 300m for Standard and 200m for Slim. The Fathom Tether is a high quality tether cable designed specifically for ROVs and other subsea applications. It is neutrally buoyant, has 300-350 lb breaking strength, and is embedded with water-blocking fibers to seal any leaks. With diameters of 4mm and 7.6mm, these tethers are slimmer than the vast majority of comparable ROV tethers. The tether carries one or four unshielded twisted pairs (UTP) of 26AWG wire. These pairs are colored and arranged in the same fashion as a Cat5 networking cable including cross-talk resistance. A pre-installed Binder 770 plug makes it easy to connect to the FXTI and Fathom Spool. A cable penetrator is installed at the other end to interface with the BlueROV2 or any of our watertight enclosures. The slim tether really shines when it comes to its size. Its slim profile makes it ultra low-drag, making it ideal for deep dives, high current dives, and long distance dives where the drag from the tether is really noticeable. The size also makes it incredibly portable and easy to handle. A hundred meter tether weighs just 3 lb (1.4 kg) and can be managed by hand very easily. Since the slim tether only has two wires, it can only be used for the primary communication of the BlueROV2. There are no spare twisted pairs when using this cable, which means that it is not compatible with applications where you need extra tether pairs. The core of the cable contains Kevlar strands for strength and Dacron fibers for space filling. Both fibers are impregnated with waterblocking compound to block any leaks caused by nicks or rips in the cable. The high-visibility yellow polyurethane foam jacket resists abrasion and provides neutral buoyancy. The stiffness of the cable is designed to be flexible enough to give plenty of freedom to your ROV, but stiff enough that it does not become tangled easily. The capabilities of this tether are meant to provide design flexibility and a wide variety of uses. Pololu carries the 3 position 0.1” (2.54mm) Crimp Connector Housings and male crimp pins that may be used for connecting your own devices to the spare tether terminations. We also have this cable available by the meter with no terminations at either end.
