水中ドローン社公式ストアにお越しくださり、誠にありがとうございます。
<<産業用水中ドローンの国内トッププロバイダー>>
“夢と感動の水中テクノロジー企業”水中ドローン社
<<米Blue Robotics社の日本における正規の販売店なのでご購入後も安心>>
※15時までのご注文確定で当日発送(日曜・祝日を除く)いたします。ご注文急増時は翌日以降の発送となる場合がございます。お急ぎの場合は電話・メールでお問い合わせください。

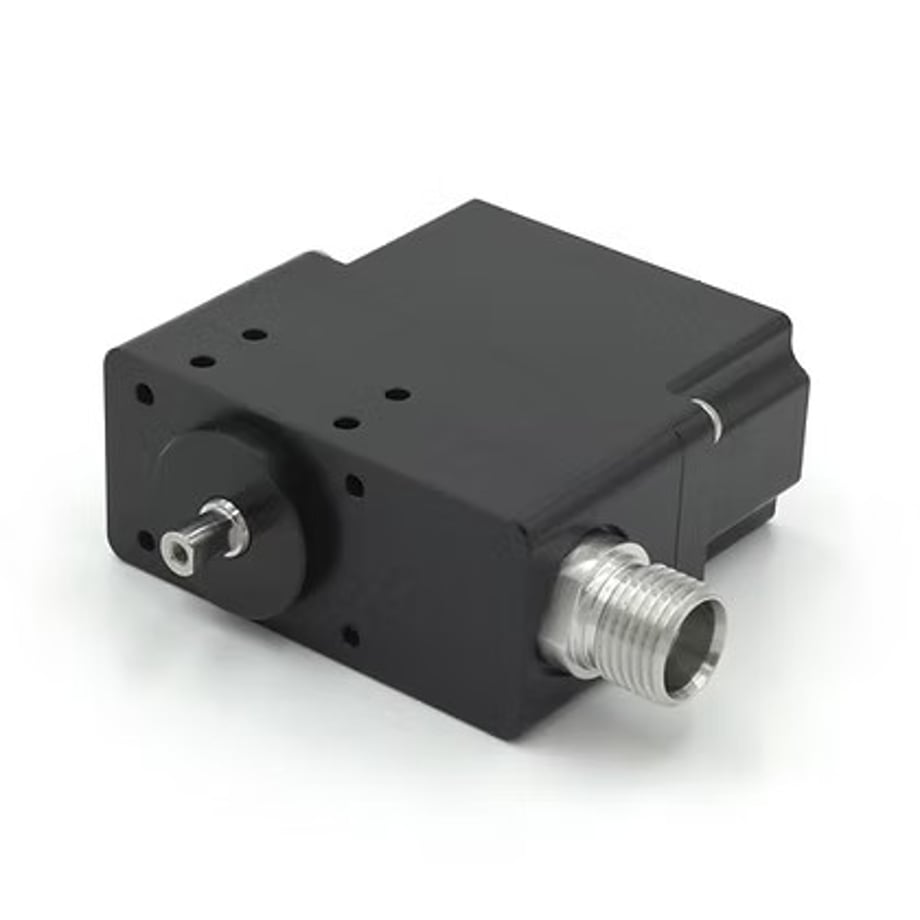

Our newest, most reliable underwater servos! With a robust machined acetal case, these waterproof servos are rated to 200 meters. In addition to two pre-assembled and pre-tested models, a kit option allows you to tailor the servo to your specific needs while saving money.
●SER-2010: 29.0 kgf-cm of torque with a default travel range of ± 70 degrees. Cobalt 3-pin bulkhead connector included.
●SER-2020: 34.0 kgf-cm of torque with a default travel range of ± 230 degrees. Programmable for up to ± 3.5 full turns of rotation with position control or continuous rotation with speed control. Brushless motor and magnetic encoder. Cobalt 3-pin bulkhead connector included.
●SER-2000: low-cost kit option that allows users to select and install their own standard-sized R/C servo inside the enclosure – including PWM, CAN, or serial servos – as well as their choice of either a Cobalt bulkhead connector or a cable with M10 penetrator.
Output shaft is a 6-mm titanium D-shaft. Does not include servo arm.
<Product Description>
Blue Trail Engineering’s SER-20XX underwater servos are compact, robust actuators for small marine robotic applications down to 200 meters. They consist of an off-the-shelf R/C servo installed in a machined acetal enclosure with a titanium output shaft and waterproof connector. By using off-the-shelf R/C servos, this architecture leverages decades of servo development in the R/C industry to provide extremely high reliability as well as almost limitless options for speed, torque, travel distance, and other features.
The SER-20XX series currently includes three models:
●The SER-2010 features a Hitec D954SW R/C servo with 29.0 kgf-cm of torque and a default travel range of ± 70 degrees.
●The SER-2020 features a Hitec HSR-M9382TH servo with 34.0 kgf-cm of torque. While its default travel range is ± 230 degrees, it can be programmed to provide up to ± 3.5 full turns of rotation with position control or continuous rotation with speed control. The HSR-M9382TH uses a brushless motor and magnetic encoder, eliminating the most common causes of servo failure.
●The SER-2000 is a kit option that allows users to select and install their own standard-sized R/C servo – including PWM, CAN, or serial servos – making it the most inexpensive and flexible option for underwater actuation. The user also has the option to install either a Cobalt bulkhead connector or a cable with M10 penetrator, such as the Blue Robotics WetLink penetrator.
Both the SER-2010 and SER-2020 come fully assembled and tested. The SER-2010 and SER-2020 have many programmable features, including travel range. If you require increased travel or any other changes to the servo's programmable parameters, we will happily program the servo per your specifications for free. Simply email [email protected] after placing your order. Alternatively, you may program the servos using a DPC-11 programmer.
The SER-2000 kit comes with the output shaft, bearings, and seal installed, and the user completes assembly with the servo and connector of their choice. Servos must be of the “standard” size (20-mm width), they must have a 25-tooth spline, and they must have the proper height. The following servos have been tested for proper fit:
●Hitec D625MW, D645MW, D930SW, D940TW, D945TW, D950TW, D954SW, D955TW, DB961WP, HSB-9360TH, HSB-9370TH, HSB-9380TH, HSB-9465SH, HSB-9475SH, HSB-9485SH, HSR-M9382TH
●GoBilda (all models)
If you would like to use a different servo, please contact Blue Trail Engineering and we will help you determine if your servo will fit.
<Contents>
1× Upper Case with pre-installed Output Shaft, Shaft Seal, Bearings, and Retaining Ring
1× Lower Case
1× M10 Square Nut
1× 2mm X 48mm O-ring
1× #6 X ¾” 316 Stainless Steel Thread-forming Screws
<Downloads>
SER-20XX Datasheet:https://e4c7c5dc-3be9-4c5a-b172-8072b57438af.usrfiles.com/ugd/e4c7c5_a69e5efb7071438993d014ea5a330c8c.pdf
SER-2000 Assembly Instructions:https://e4c7c5dc-3be9-4c5a-b172-8072b57438af.usrfiles.com/ugd/e4c7c5_9a93036e317241a285524d88131dfe81.pdf
※本商品ご注文の際は、型番のご指定をお願いいたします。
御見積・御注文に関しては弊社のホームページお問い合わせフォーム又 は下記のあて先へご連絡下さい。
【メールでの問い合わせ 】[email protected]
【お電話での問い合わせ】049-293-8394
