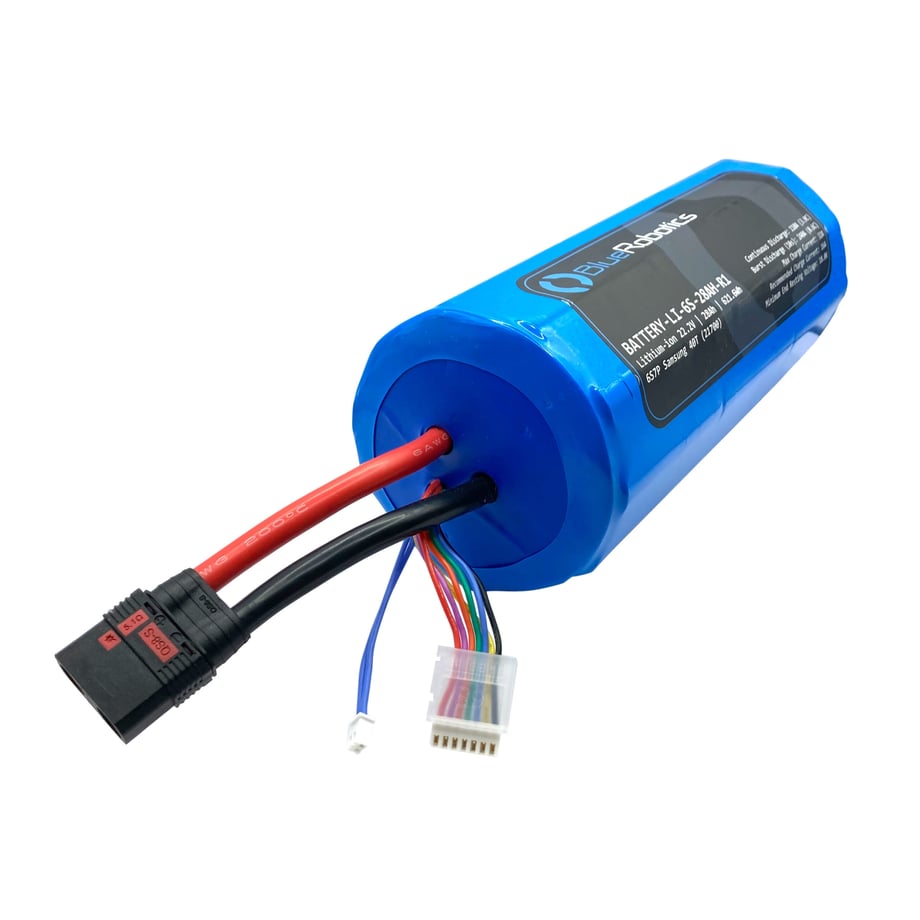

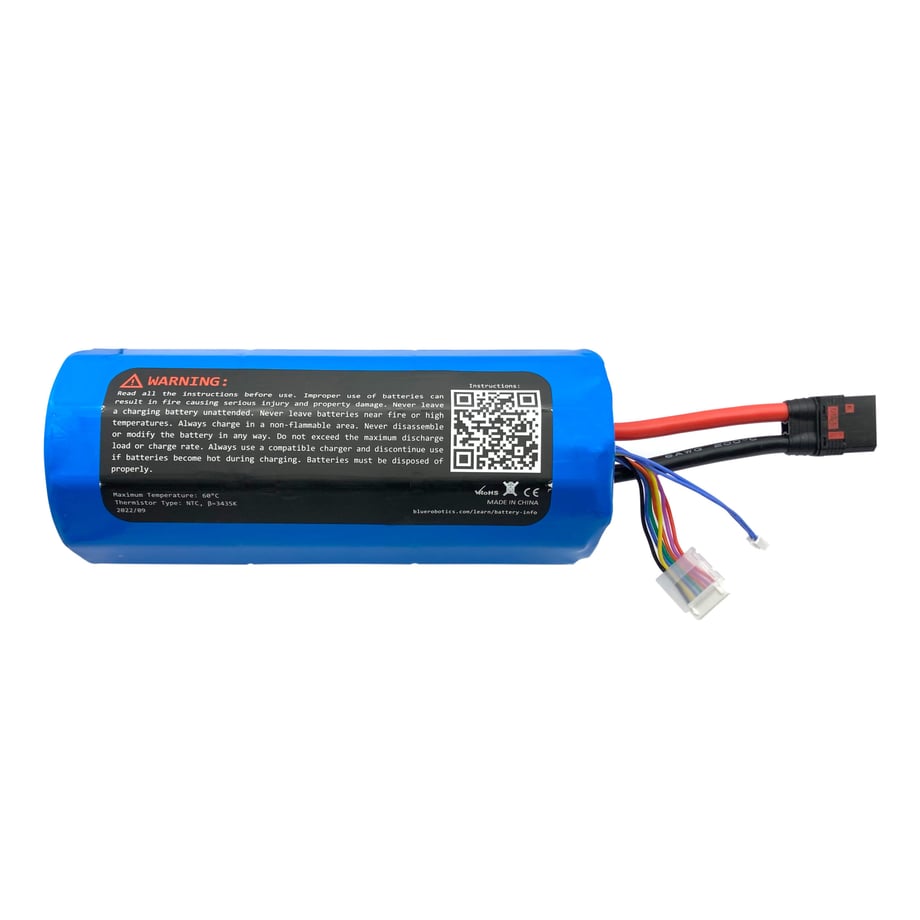

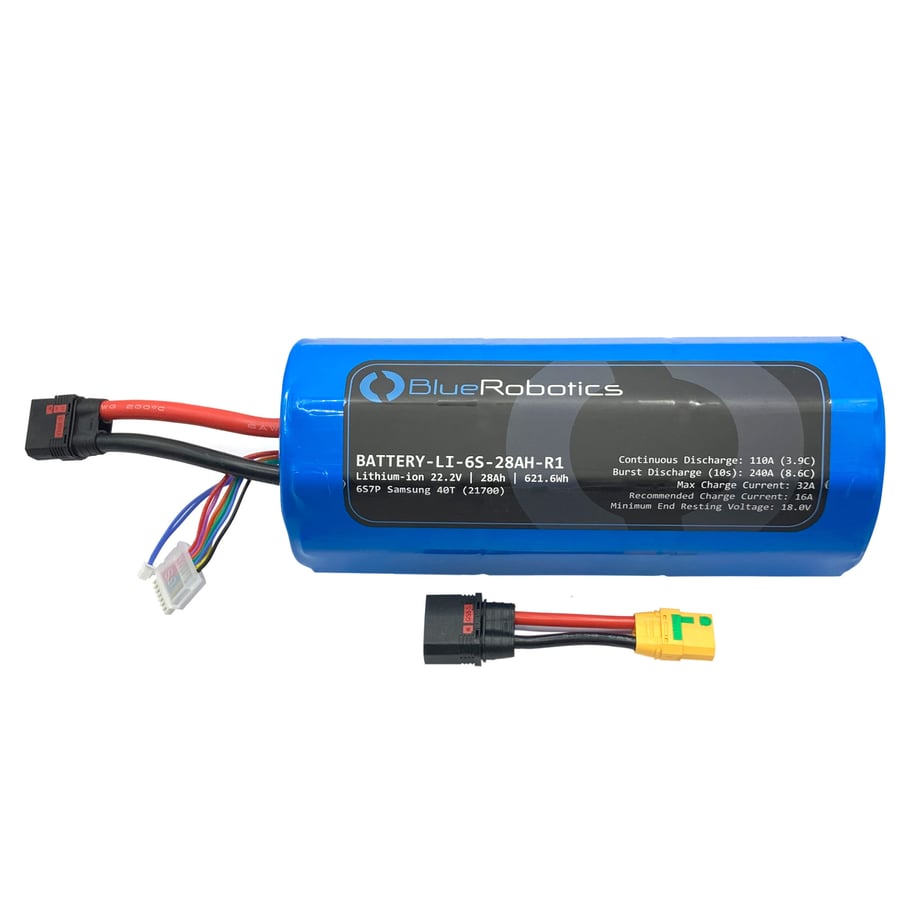

水中ドローン社公式ストアにお越しくださり、誠にありがとうございます。 <<産業用水中ドローンの国内トッププロバイダー>> “夢と感動の水中テクノロジー企業”水中ドローン社 <<米Blue Robotics社の日本における正規の販売店なのでご購入後も安心>> ※15時までのご注文確定で当日発送（日曜・祝日を除く）いたします。ご注文急増時は翌日以降の発送となる場合がございます。お急ぎの場合は電話・メールでお問い合わせください。 This Lithium-ion Battery (22.2V, 28Ah), fondly known amongst our team as the MEGA BATTERY, is designed for use in subsea vehicles powered by the T500 Thruster. It fits in our 4″ Series watertight enclosures and has enough power output and capacity for serious ROVs, USVs, and other vehicles! It has a QS8-S connector as well as an adapter for XT90S connections. Information!※ This battery does not have a built-in battery management system to prevent over-discharging. The battery voltage must be monitored to prevent discharging below the minimum safe voltage level. Please see the Guides section below for more information. SKU: BR-100313 HS Code: 8506.50.00 <Product Description> The Lithium-ion Battery (22.2V, 28Ah) is a high-capacity battery pack made from high-quality Samsung 40T cells. We designed this battery specifically for use on vehicles powered by the T500 Thruster. It fits in our 4″ Series watertight enclosure and is equipped with a QS8-S connector that can handle the 110A continuous discharge rating. This battery does not include an internal battery management system (BMS) to prevent overdischarging. The battery voltage must be monitored to prevent discharging below the minimum safe voltage level. The battery can be charged with any lithium-ion compatible balance charger such as this one. It comes with a QS8-S to XT90 adapter to connect to the charger and also for use in low discharge rate applications. The Samsung 40T lithium-ion cells used in this battery have excellent performance characteristics, as well as a high tolerance for accidental mishandling. The battery is CE (Conformité Européenne) approved, ROHS compliant, and UN38.3 certified. Certificates can be provided upon request. The especially high capacity of this battery means that it is subject to more stringent shipping regulations than our other products. In addition to a hazardous goods shipping surcharge, we are also only able to ship this battery to a small number of countries: ・Australia ・Canada ・India – Delhi, Karnataka, Tamil Nadu, and Telangana ONLY ・Japan ・Mexico ・New Zealand ・Singapore ・United States of America (excluding Hawaii, Alaska, and Puerto Rico) <Contents> ・1 x Lithium-ion Battery (22.2 V, 28 Ah) ・1 x QS8-S to XT90S Adapter <Technical Details> - 3D Models BATTERY-LI-6S-28AH-ADAPTED-R1 (.zip)　→　https://cad.bluerobotics.com/BATTERY-LI-6S-28AH-ADAPTED-R1.zip - Documents Battery MSDS (.pdf)　→　https://bluerobotics.com/wp-content/uploads/2023/01/6S-28AH-MSDS-Public.pdf UN38.3 Test Report (.pdf)　→　https://bluerobotics.com/wp-content/uploads/2023/01/6S-28AH-UN38.3-Test-Report-Public.pdf CE Certificate of Compliance (.pdf)　→　https://bluerobotics.com/wp-content/uploads/2023/01/6S-28AH-CE-Certificate-of-Compliance-Public.pdf - Revision History 13 March 2023 R1 – Initial Release <Guides> - Safety Lithium-ion batteries have a high energy density and must be treated with care to ensure safe operation and a long lifespan. ・Avoid discharging below 3.0 V per cell (18.0 V total voltage) and never below 2.5 V per cell (15.0 V total voltage) ・Never charge over 4.20 V per cell (25.2 V total voltage) ・Do not puncture, crush, cut, or disassemble ・Do not burn or expose to temperatures above 60°C (140°F) ・Always use a lithium-ion compatible balance charger ・Do not leave unattended while charging ・Do not exceed maximum charge (32 A) or discharge (110 A*) rate ・Do not pick up by discharge leads, always handle by gripping battery body. *See Discharging section below for more information. 　Additional Lithium-ion Safety Information→https://batterybro.com/pages/18650-battery-safety - Charging The Blue Robotics H6 PRO Lithium Battery Charger is recommended for use with this battery. It is preconfigured with the correct settings to safely charge all Blue Robotics batteries. To charge this battery using the Blue Robotics H6 PRO Lithium Battery Charger, change the cell count option to 6S (22.2V) and start the charging task. Make sure to keep it away from flammable materials and always monitor the battery as it charges, discontinue charging if it becomes hot or changes in appearance. You can view the full H6 PRO Charger user instructions here. If you are not using the Blue Robotics H6 Pro Lithium Battery Charger, use the following instructions: Only use a lithium-ion/polymer compatible balance charger to charge this battery, attempting to use another type of charger will damage the battery. The charger should have a balance charge function and be able to balance a lithium battery with 6 cells (6S). Make sure to keep it away from flammable materials and always monitor the battery as it charges, discontinue charging if it becomes hot or changes in appearance. Use your charger’s lithium polymer (LiPo) charging setting and set it to 6S (22.2V). The LiPo setting will charge the battery to the fully charged voltage of 4.20 V per cell, 25.2 V total battery voltage. We recommend balance charging/balancing the battery at every charge to keep all cells at the same level of charge. If quick charging is a priority, balancing should be done at least every third charge. Cells that are not properly balanced may become overcharged. An overcharged cell is unstable and can lead to battery failure, property damage, or personal injury. This battery can be safely charged at up to 32 A, which will bring it back up to full charge faster. However, we recommend charging at 16 A regularly in order to maximize capacity and battery lifespan. A summary of the correct charging settings is provided below. 　Lithium-ion Battery (22.2V, 28Ah) Charge Settings ・Charge Profile LiPo ・Number of Cells 6S ・Nominal Voltage 22.2 V total / 3.7 V per cell ・Fully Charged Voltage 25.2 V total / 4.2 V per cell ・Recommended Charge Rate 16 A ・Maximum Charge Rate 32 A - Discharging After charging, connect the QS8-S discharge plug to your vehicle, and the battery is ready to use. This battery does not have a built-in battery management system to prevent overdischarging. The battery voltage must be monitored to prevent discharging below the minimum safe voltage level of 18 V. The battery can sustain a constant discharge of up to 110 A, and up to 240 A in short bursts of up to 10 seconds. Make sure to never short the battery discharge plug or plug it into a circuit that may be shorted. If using the the QS8-S to XT90 adapter, the constant discharge must not exceed 90 A. Note that the maximum safe discharge rating is dependent on adequate cooling to keep the battery below 60°C. If used in an enclosed space without airflow, constant current draw must be decreased appropriately to keep the battery at a safe temperature. Temperature can be monitored with the integrated 3435 K negative temperature coefficient (NTC) thermistor, which has a resistance of 10 kΩ at 25°C. - Storage Charge will be lost over time when the battery is stored, and care must be taken to ensure long term storage does not damage the battery. Storage temperature should always be below 60°C (140°F), and the lower, the better. The battery should be stored at about 50% charge, or 3.7 V per cell (22.2 V total). The Blue Robotics H6 Pro Charger, and most lithium-ion/polymer chargers, have a storage setting that will automatically put the battery at the correct voltage for storage. Batteries in storage should be periodically checked and charged to keep each cell above the 3.0 V minimum. Additional Lithium-ion Storage Information→https://batterybro.com/blogs/18650-wholesale-battery-reviews/77975750-how-to-store-18650-batteries-safely 【販売部コメント】 本製品はBlueROV2との互換性はございません。 耐圧容器に収める場合、サイズは4インチ以上が必要でございます。 ご不明点等ございましたらお問い合わせ([email protected])下さい。
