M200モーター(標準1mケーブル) - M200 Motor (Standard - 1 meter cable length)

残り3点

26,422円

送料についてはこちら

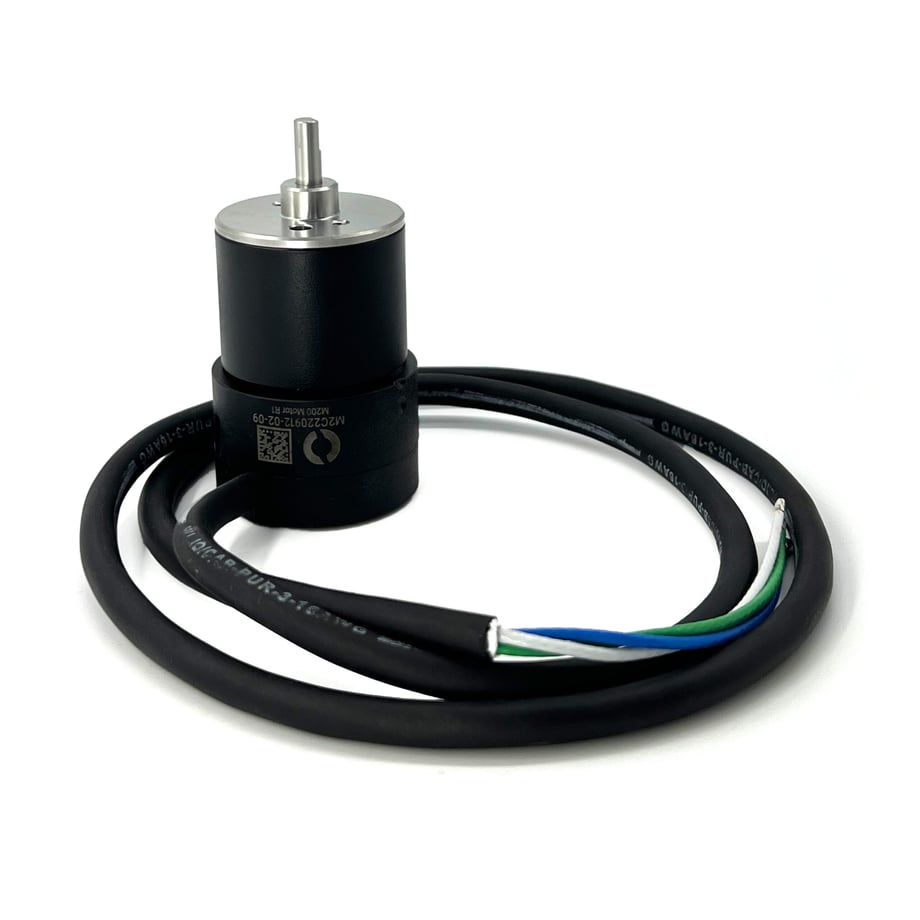

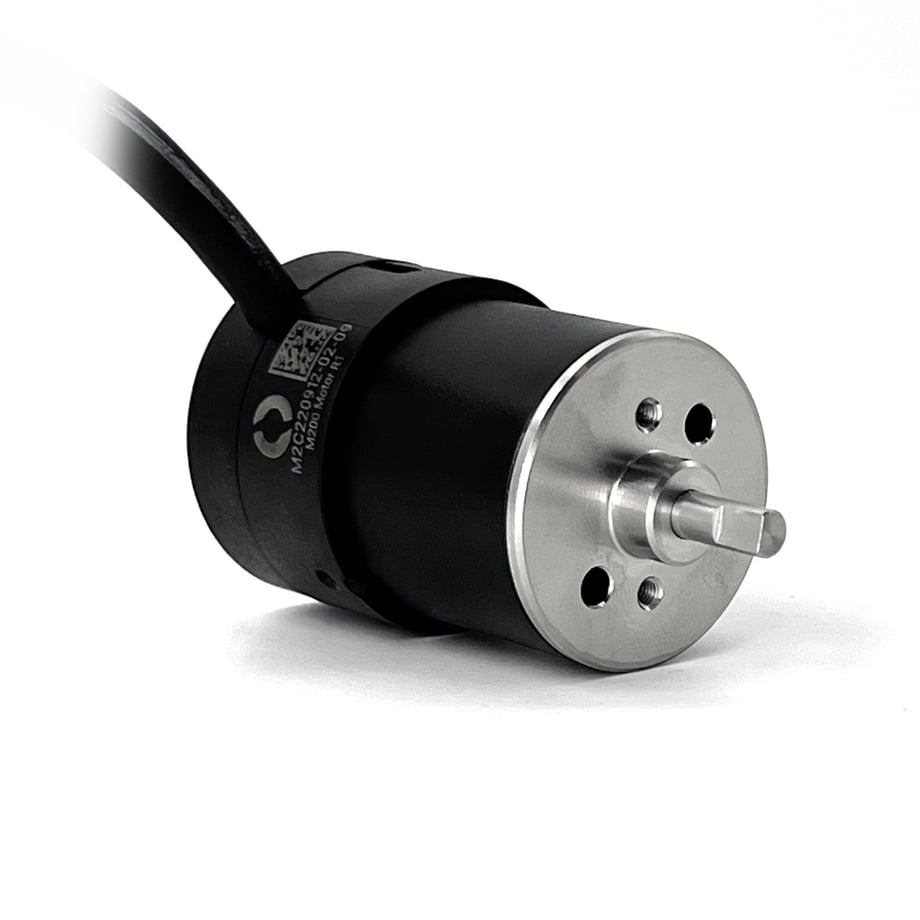

水中ドローン社公式ストアにお越しくださり、誠にありがとうございます。 <<産業用水中ドローンの国内トッププロバイダー>> “夢と感動の水中テクノロジー企業”水中ドローン社 <<米Blue Robotics社の日本における正規の販売店なのでご購入後も安心>> ※15時までのご注文確定で当日発送(日曜・祝日を除く)いたします。ご注文急増時は翌日以降の発送となる場合がございます。お急ぎの場合は電話・メールでお問い合わせください。 The M200 Motor is a subsea motor designed to run in harsh ocean conditions. It has the same performance as the T200 Thruster, but without a nozzle, making it perfect for use on USVs (like the BlueBoat), AUVs, and in custom projects such as actuators and subsea tooling. It requires a speed controller for operation. SKU: BR-101694-001 HS Code: 8501.31.4000 <Product Description> The M200 Motor is essentially the T200 Thruster, but designed to be used in more generic applications. With a propeller, it’s a great propulsor for unmanned surface vessels (USVs) and unmanned underwater vehicles (UUVs), but it can also be used to build subsea tooling, drive a gear-train, or whatever you can imagine! Check out this subsea rotary cleaning brush that we built as an example application! Like the T200 Thruster, the M200 Motor is a flooded three-phase brushless motor. The motor stator is encapsulated and electrically isolated from the water and the magnet rotor is coated and made from stainless steel to make it resistant to seawater corrosion. The motor uses high-performance water-lubricated plastic bushings and is water-cooled as water flows through the motor. The M200 Motor has a base with four M3 mounting holes to secure it in a wide range of applications. The standard version comes with a 1 meter long cable and the BlueBoat version has a shorter cable with pre-installed cable penetrator and and MT60 connector ready to install on the BlueBoat! <Contents> -Standard ・M200 Motor x 1 <Technical Details> - 3D Product View https://bluerobotics.com/store/thrusters/t100-t200-thrusters/m200-motor/#tab-3d-product-view - 3D Models M200_STANDARD_BR-101376_PUBLIC (.zip) → https://cad.bluerobotics.com/M200_STANDARD_BR-101376_PUBLIC.zip M200_BB120_BR-101380_PUBLIC (.zip) → https://cad.bluerobotics.com/M200_BB120_BR-101380_PUBLIC.zip - Revision History 20 June 2023 ・BR-101376 - Initial Release <Guides> Quick Start → https://bluerobotics.com/store/thrusters/t100-t200-thrusters/m200-motor/#tab-learn M200 Motor User Guide → https://bluerobotics.com/learn/motor-user-guide/ Making an M200 Powered Brush → https://bluerobotics.com/learn/making-an-m200-powered-brush/ 【販売部コメント】 本製品には長さ1mのケーブルが付属しております。 製品画像のご確認をお願いいたします。
