Cerulean Omniscan 450 SS Integration Kit

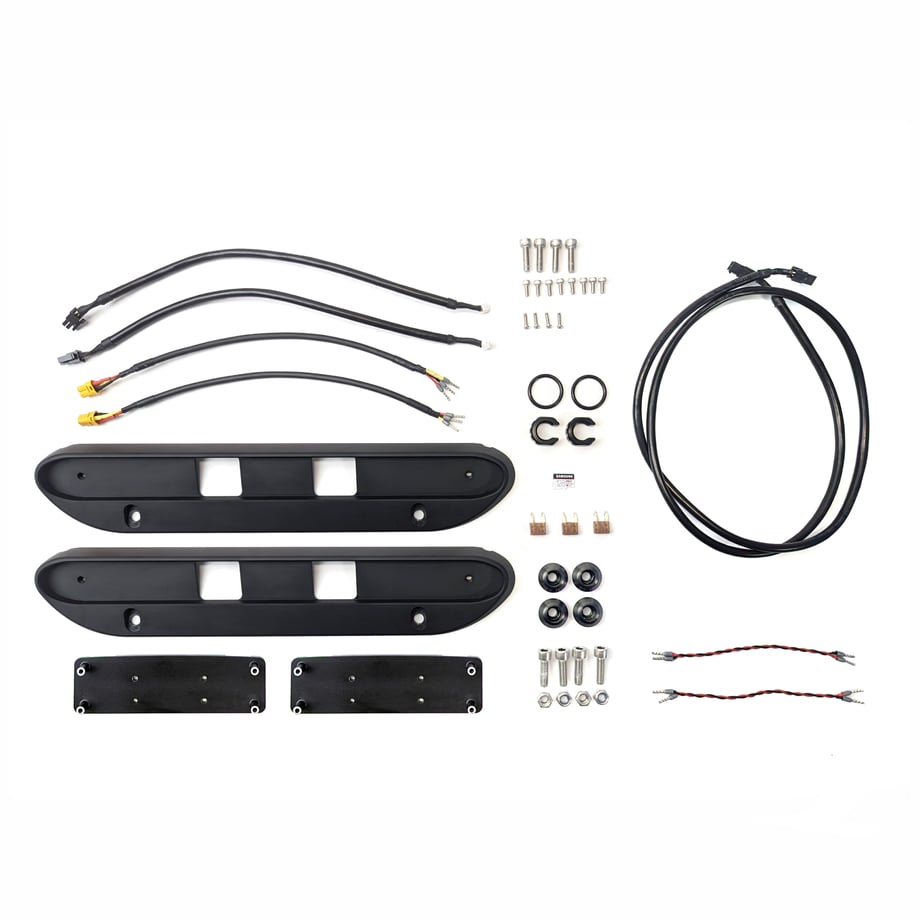

水中ドローン社公式ストアにお越しくださり、誠にありがとうございます。 <<産業用水中ドローンの国内トッププロバイダー>> “夢と感動の水中テクノロジー企業”水中ドローン社 <<米Blue Robotics社の日本における正規の販売店なのでご購入後も安心>> ※15時までのご注文確定で当日発送(日曜・祝日を除く)いたします。ご注文急増時は翌日以降の発送となる場合がございます。お急ぎの場合は電話・メールでお問い合わせください。 Includes everything you need to install the Omniscan 450 Side Scan Sonar on the BlueBoat. This integration kit is included with the sonar when you purchase from Blue Robotics, but it’s available separately as well. SKU: BR-102295 HS Code: 9015.90.0190 <Product Description> This integration kits includes everything needed to install the Cerulean Omniscan 450 Side Scan Sonar on the BlueBoat. It’s included with the Omniscan when purchased from Blue Robotics, but is also available separately in case you get the sonar directly from Cerulean. Included are two transducer mounts for the BlueBoat hull, two PCB mounts that fit the BlueBoat’s electronics tray, a few cables, and installation hardware. It also includes a 128 GB microSD card flashed with BlueOS, which gives you enough space to log large sonar data files. Obviously, the sonar itself is not included in this product, but you can find it here! <Contents> ・ Cerulean Omniscan 450 SS transducer bracket (BR-102204) x 2 ・ Aluminum PCB standoff (BR-102498) x 2 ・ BlueOS 128GB SD card for BlueBoat (BR-102293-002) x 1 ・ Micro-Fit Ethernet cable, 1.1 m (BR-102172) x 1 ・ Micro-Fit to JST GH cable, 0.32 m (BR-102122) x 2 ・ E-Tray transducer cable (BR-102212) x 2 ・ 2-position ferrules to ferrules power cable, 150 mm (BR-102196) x 2 ・ 5A Mini Blade fuse (BR-101401-005) x 3 ・ M5x18 socket head cap screw (BR-101191) x 4 ・ #3×3/8″ button head thread forming screw (BR-101031) x 4 ・ M3x8 socket head cap screw (BR-100989) x 8 ・ 8.5″ cable tie (BR-102154) x 8 ・ BlueBoat Hull Mount Bushing x 4 x ・ M6x20 socket head cap screw (BR-102241) x 4 ・ M6 nylon insert lock nut (BR-101258) x 4 ・ -117 bulkhead O-ring (BR-100635-117) x 2 ・ M14 bulkhead nut (BR-100845) x 2 - 3D Models OMNISCAN_450_SS_BR-102105 (.zip) → https://cad.bluerobotics.com/OMNISCAN_450_SS_BR-102105.zip - Revision History 13 December 2023 ・BR-102295 - Initial Release <Guides> Integrating the Omniscan 450 SS on the BlueBoat → https://bluerobotics.com/learn/omniscan-450-ss-integration/
