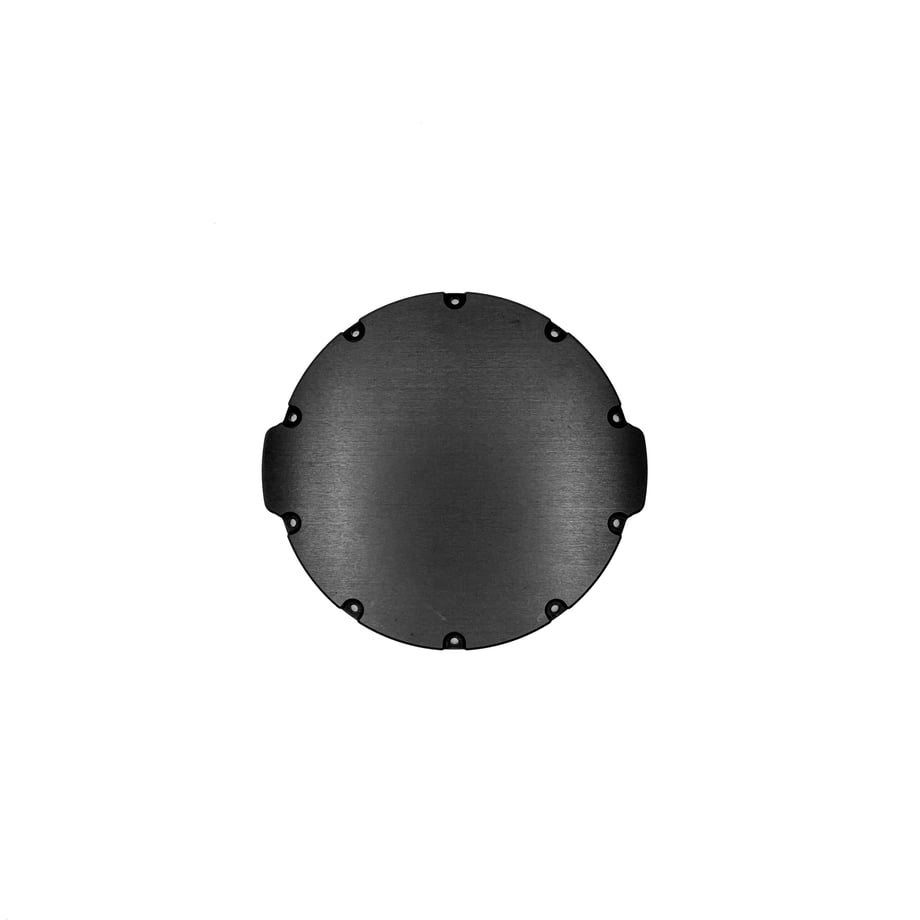

水中ドローン社公式ストアにお越しくださり、誠にありがとうございます。 <<産業用水中ドローンの国内トッププロバイダー>> “夢と感動の水中テクノロジー企業”水中ドローン社 <<米Blue Robotics社の日本における正規の販売店なのでご購入後も安心>> ※15時までのご注文確定で当日発送（日曜・祝日を除く）いたします。ご注文急増時は翌日以降の発送となる場合がございます。お急ぎの場合は電話・メールでお問い合わせください。 End caps and flange caps for the 2″, 3″, 4″, 5″, 6″, and 8″ Series Watertight Enclosures. These are the second generation of these end caps and flange caps with precision machined O-ring interfaces, a locking cord, anti-rotation feature, and optional M10 holes for cable penetrators. Rated to depths up to 950 meters. If you’re looking for a complete underwater enclosure, check out the Watertight Enclosure Configuration page. SKU: BR-102203-001 HS Code: 7606.92.3025 Information! The new 6″ and 8″ series end caps are not compatible with the non-locking flanges. <Product Description> A variety of end cap and flange cap options for the 2″, 3″, 4″, 5″, 6″, and 8″ Series Watertight Enclosures allow you to customize your enclosure for your application. End caps require an O-ring sealing flange to be installed on the enclosure and flange caps have the O-ring sealing flange built-in so that one is not necessary. The clear acrylic end cap and dome end cap offer optically clear ports for cameras, lights, and other applications where optical clarity is important. They install to the O-ring sealing flange with six included screws. The flange caps are anodized aluminum and include the same features as the O-ring sealing flange including dual radial O-rings for reliable high-pressure sealing, a locking cord gland, and an anti-rotation feature. The flange caps are available with a solid blank end, which can be machined with custom hole patterns, as well as M10 threaded holes for our cable penetrators. The flange caps do not require any screws, eliminating the need for stainless steel near the enclosures and preventing galvanic corrosion. The end caps and flange caps are available individually here, but you can configure a complete watertight enclosure from the watertight enclosure configuration page. 3D Product View（CAD models are of the 3″ Series end caps.） →https://bluerobotics.com/store/watertight-enclosures/locking-series/wte-end-cap-vp/#tab-3d-product-view <Contents> ・1 x End Cap ・10 x Socket Head Cap Screw <Technical Details> - Documents Data Sheet(.pdf)　→　https://bluerobotics.com/wp-content/uploads/2019/11/WTE-DATASHEET-RevC-JAN2024.pdf - 3D Models WTE5_END_CAP_BLANK_BR-102203-001 (.zip) → https://cad.bluerobotics.com/WTE5_END_CAP_BLANK_BR-102203-001.zip - Revision History 7 February 2024 ・BR-102203-001, 130 mm (5") Blank - Initial release <Guides> Watertight Enclosure (WTE) User Guide →　https://bluerobotics.com/learn/watertight-enclosure-wte-assembly-new/ Using the Vacuum Plug and Hand Pump →　https://bluerobotics.com/learn/using-the-vacuum-test-plug/
