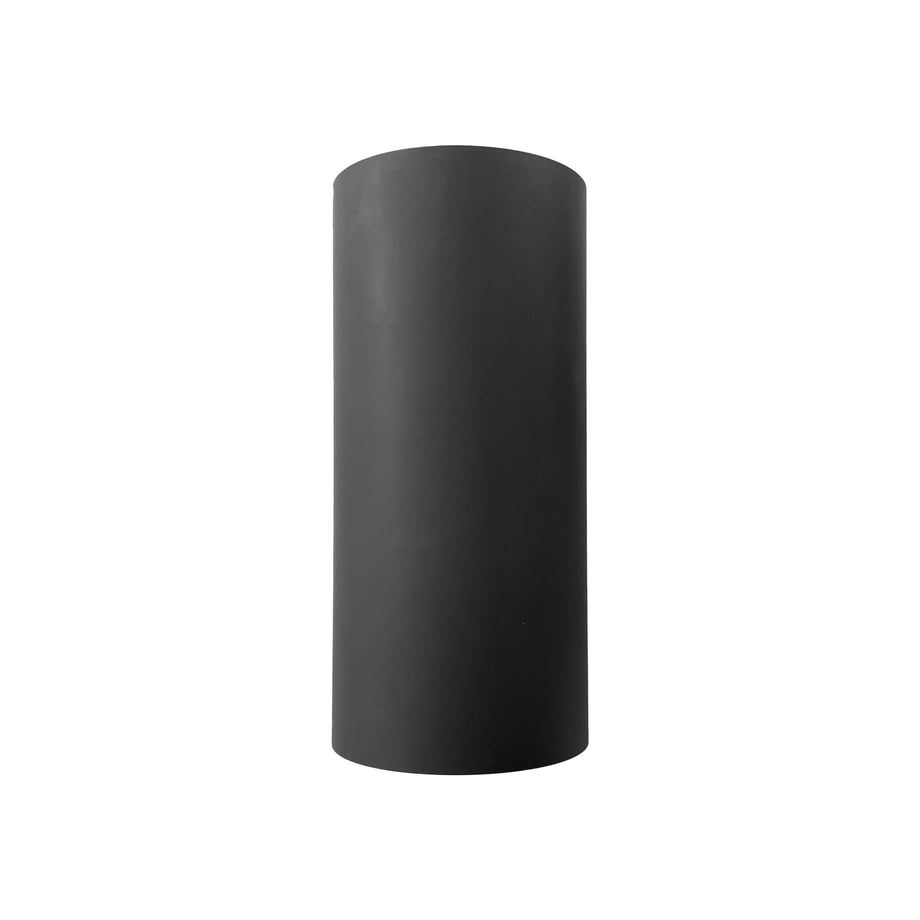

【新商品】Watertight Enclosure Tubes(5" Locking Series) - Aluminum - 300 mm (11.8") - 1000 m

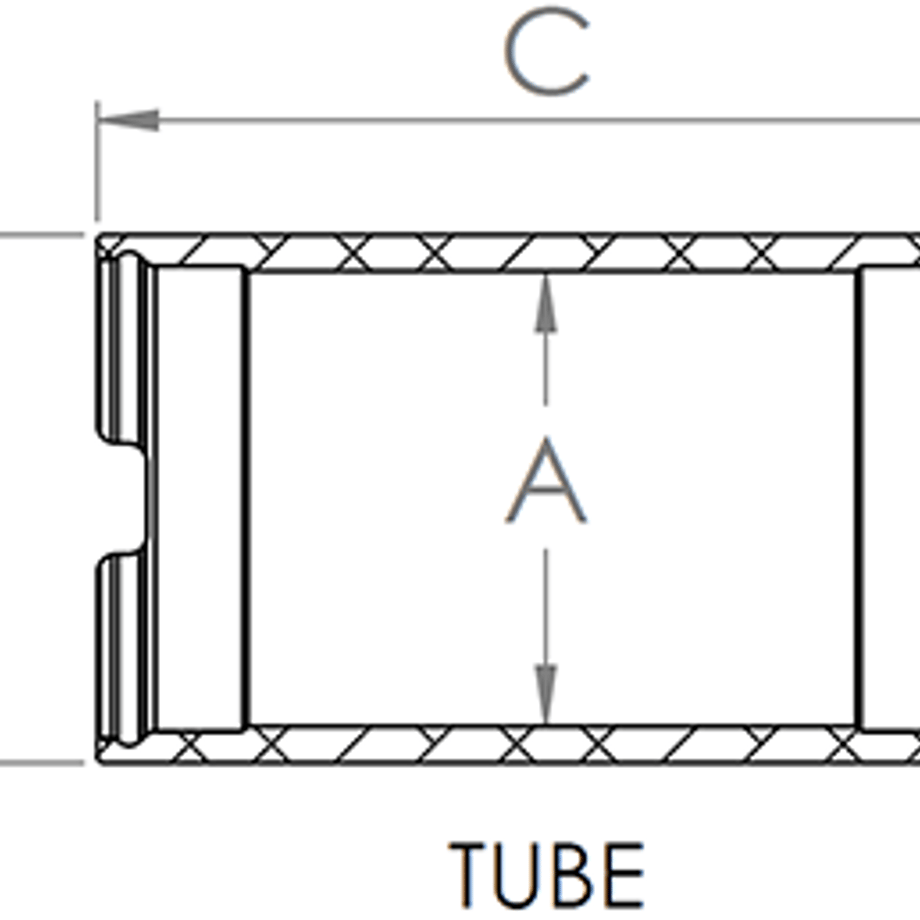

水中ドローン社公式ストアにお越しくださり、誠にありがとうございます。 <<産業用水中ドローンの国内トッププロバイダー>> “夢と感動の水中テクノロジー企業”水中ドローン社 <<米Blue Robotics社の日本における正規の販売店なのでご購入後も安心>> ※15時までのご注文確定で当日発送(日曜・祝日を除く)いたします。ご注文急増時は翌日以降の発送となる場合がございます。お急ぎの場合は電話・メールでお問い合わせください。 Tubes for the 2″, 3″, 4″, 5″, 6″, and 8″ Series Watertight Enclosures, available in a variety of lengths and in clear cast acrylic plastic and aluminum materials. These are the second generation of these tubes with precision machined O-ring interfaces, a locking cord, and anti-rotation feature. Rated to depths up to 950 meters. If you’re looking for a complete underwater enclosure, check out the Watertight Enclosure Configuration page. Information! ・These tubes are not compatible with the first generation non-locking flanges. ・Because of the precision machined interface, the tubes are no longer available in custom lengths. SKU: BR-101409-300 HS Code: 7608.20.0090 <Product Description> These 2″, 3″, 4″, 5″, 6″, and 8″ locking tubes are available in a variety of lengths and in both cast acrylic plastic and anodized 6061-T6 aluminum. These tubes are a substantial upgrade over the first generation of watertight enclosure tubes. Both the acrylic and aluminum tube options have precision machined O-ring interfaces at each end, ensuring a consistent and reliable fit with the sealing flange. A smooth surface finish ensures proper sealing between the O-ring flange and the tube. Also machined into the ends is a gland for a locking cord and a slot for cord insertion. You can read more about the locking feature and see a diagram of how it works on the main watertight enclosure product page. The slot for cord insertion doubles as an anti-rotation feature, mating with a feature on the flange. This keeps the flange in a consistent orientation with the tube and prevents the user from rotating the flange and damaging anything inside the enclosure. The tubes are available individually here, but you can configure a complete watertight enclosure from the watertight enclosure configuration page. Because of the precision machined interface, the tubes are no longer available in custom lengths. <Contents> ・1 x Tube <Technical Details> - Documents Data Sheet(.pdf) → https://bluerobotics.com/wp-content/uploads/2019/11/WTE-DATASHEET-RevC-JAN2024.pdf - 3D Models WTE5_M_LOCKING_TUBE_300_BR-101409-300 (.zip)  → https://cad.bluerobotics.com/WTE5_M_LOCKING_TUBE_300_BR-101409-300.zip - Revision History 7 February 2024 ・BR-101409-300, 130 mm (5") 300 mm - Initial release <Guides> Watertight Enclosure (WTE) User Guide → https://bluerobotics.com/learn/watertight-enclosure-wte-assembly-new/ Pressure Relief Valve Installation and Usage → https://bluerobotics.com/learn/pressure-relief-valve-installation-and-usage/ Using the Vacuum Plug and Hand Pump → https://bluerobotics.com/learn/using-the-vacuum-test-plug/
