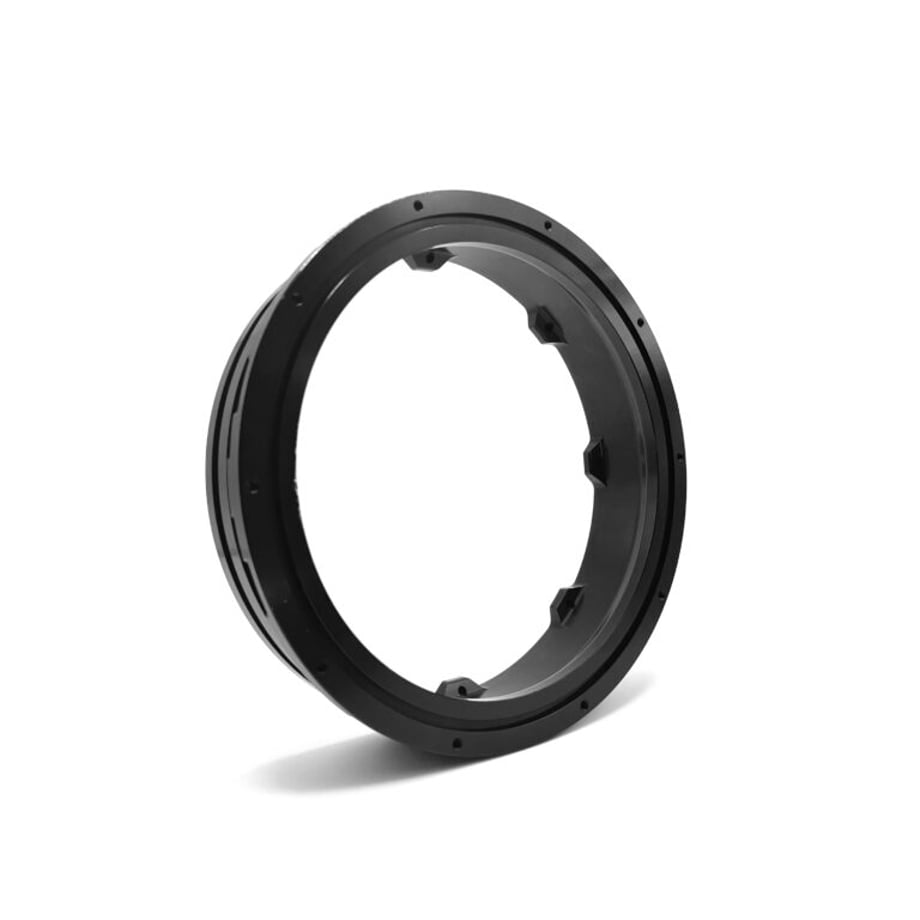

O-ring sealing flange for the 2″, 3″, and 4″ Watertight Enclosures. These are the second generation of flanges with a locking cord and anti-rotation feature. Compatible with dome end caps, flat end caps, and custom end caps. Includes locking cord and O-rings.
If you’re looking for a complete underwater enclosure, check out the Watertight Enclosure Configuration page.
Information!
These flanges are not compatible with the first generation non-locking tubes.
SKU: BR-102201
HS Code: 7616.99.5190
<Product Description>
The O-ring Flange seals to a tube on one end and to an end cap on the other. These are used with our flat end caps and dome end caps to create a high-pressure watertight interface to the enclosure tube. The flange can be used with custom made end caps as well.
These second generation flanges are anodized aluminum and include dual radial O-rings and a face seal O-ring for reliable high-pressure sealing, a locking cord gland, and an anti-rotation feature. They comes with PTFE locking cord and locking cord handles to secure the flange to the tube. These flanges are only compatible with our watertight enclosure tubes, which have precision machined features at each end to interface with the flange.
Four internal mounting holes make it easy to attach internal contents securely. This feature is used on the BlueROV2 to hold the electronics tray.
The flanges are available individually here, but you can configure a complete watertight enclosure from the watertight enclosure configuration page.
<Contents>
・1 x Flange
・1 x Face Seal O-ring
・2 x Radial O-ring
・1 x PTFE Locking Cord
・1 x Locking Cord Handle and Set Screw
・1 x Single-use Packet of Molykote 111 Compound
<Technical Details>
- Documents
Data Sheet(.pdf) → https://bluerobotics.com/wp-content/uploads/2019/11/WTE-DATASHEET-RevC-JAN2024.pdf
- 3D Models
WTE6_LOCKING_FLANGE_BR-102201 (.zip) → https://cad.bluerobotics.com/WTE6_LOCKING_FLANGE_BR-102201.zip
- Revision History
7 February 2024
・BR-102201, 150 mm (6") - Initial release
<Guides>
Watertight Enclosure (WTE) User Guide → https://bluerobotics.com/learn/watertight-enclosure-wte-assembly-new/
Pressure Relief Valve Installation and Usage → https://bluerobotics.com/learn/pressure-relief-valve-installation-and-usage/
Using the Vacuum Plug and Hand Pump → https://bluerobotics.com/learn/using-the-vacuum-test-plug/
