BlueROV2 Roof Rack

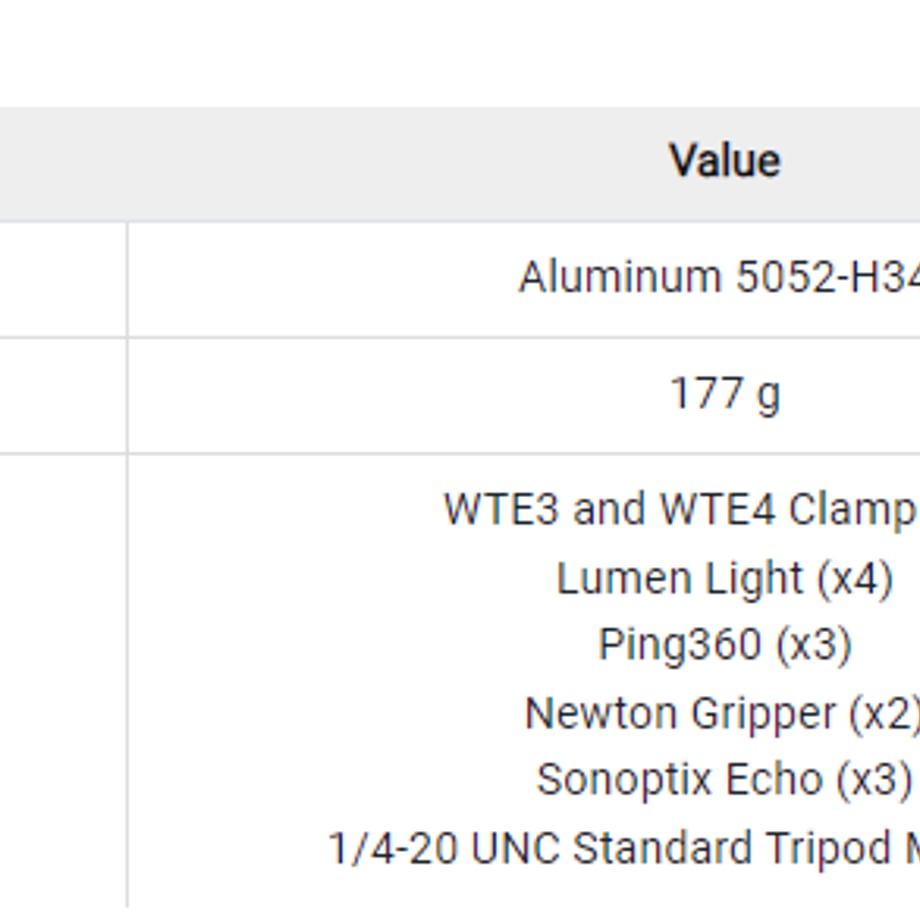

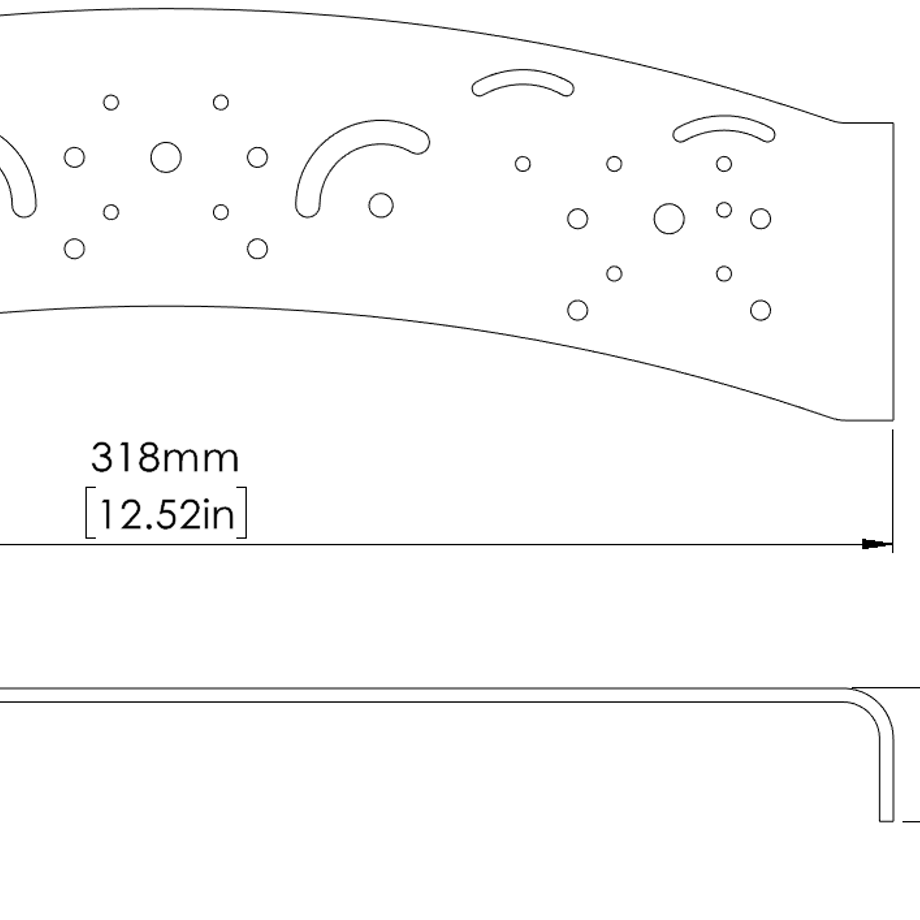

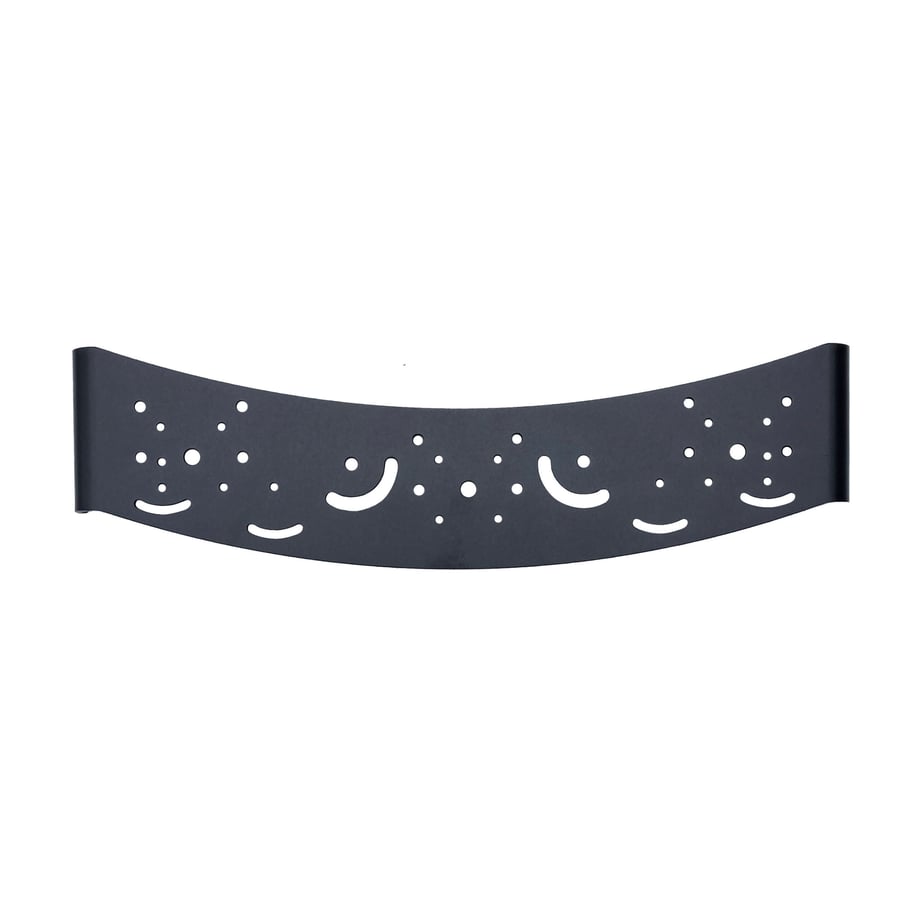

水中ドローン社公式ストアにお越しくださり、誠にありがとうございます。 <<産業用水中ドローンの国内トッププロバイダー>> “夢と感動の水中テクノロジー企業”水中ドローン社 <<米Blue Robotics社の日本における正規の販売店なのでご購入後も安心>> ※15時までのご注文確定で当日発送(日曜・祝日を除く)いたします。ご注文急増時は翌日以降の発送となる場合がございます。お急ぎの場合は電話・メールでお問い合わせください。 It’s exactly what you think it is: a roof rack for your BlueROV2 to attach more cool stuff! The Roof Rack is made from anodized aluminum and has mounting holes for additional Lumen lights, the Ping360, the Sonoptix ECHO Multibeam Sonar, Newton Gripper, our Watertight Enclosure Clamps, and standard 1/4-20 UNC tripod mounts, plus you can always drill more yourself! SKU: BR-102258 HS Code: 7606.92.3035 <Product Description> At first we were going to call this the BlueROV2 Accessory Bar, which is a perfectly fine name, but honestly not that exciting and not that clear. Then, lightbulb moment: BlueROV2 Roof Rack. Yes. That’s what it’s called. The roof rack is a bent aluminum mounting bracket that spans between the BlueROV2’s side panels and provides space on top to mount just about anything. It uses existing holes on the BlueROV2’s frame to mount in front or rear position, depending on your application. It has pre-drilled holes for the following accessories (not necessarily all at the same time): ・4 x Lumen Lights ・3 x Watertight Enclosure Clamps ・Newton Gripper ・Ping360 Scanning Imaging Sonar ・Sonoptix ECHO Multibeam Imaging Sonar ・Standard 1/4-20 UNC Tripod Mounts The top of the ROV is often the best spot for devices like sonars. We’ve also used this bracket to mount a GPS unit in a 2″ enclosure, as a tether attachment point, and for an ultrasonic thickness gauge. Last, the bracket has one more cool feature! It can mount to the Lumen light mounting holes at the front of the BlueROV2 frame so that you can mount accessories right in front of the camera. We’re not sure what you’d do with that yet, but it’s an option! Check out the guide for more details on how to use it. <Contents> ・1 x BlueROV2 Roof Rack ・4 x M3x12 Socket Head Cap Screw (BR-101067) ・4 x M5x12 Button Head Cap Screw (BR-100074) <Technical Details> - 3D Models ROOF_RACK_BR-102258_PUBLIC (.zip) → https://cad.bluerobotics.com/ROOF_RACK_BR-102258_PUBLIC.zip - Revision History 11 October 2023 ・BR-102258 - Initial Release <Guides> Quick Start → https://bluerobotics.com/store/rov/bluerov2-accessories/rov-roof-rack/#tab-learn Installing the BlueROV2 Roof Rack → https://bluerobotics.com/learn/installing-the-bluerov2-roof-rack/
