BlueBoat ハッチベース&ラッチ − BlueBoat Hatch Base and Latches

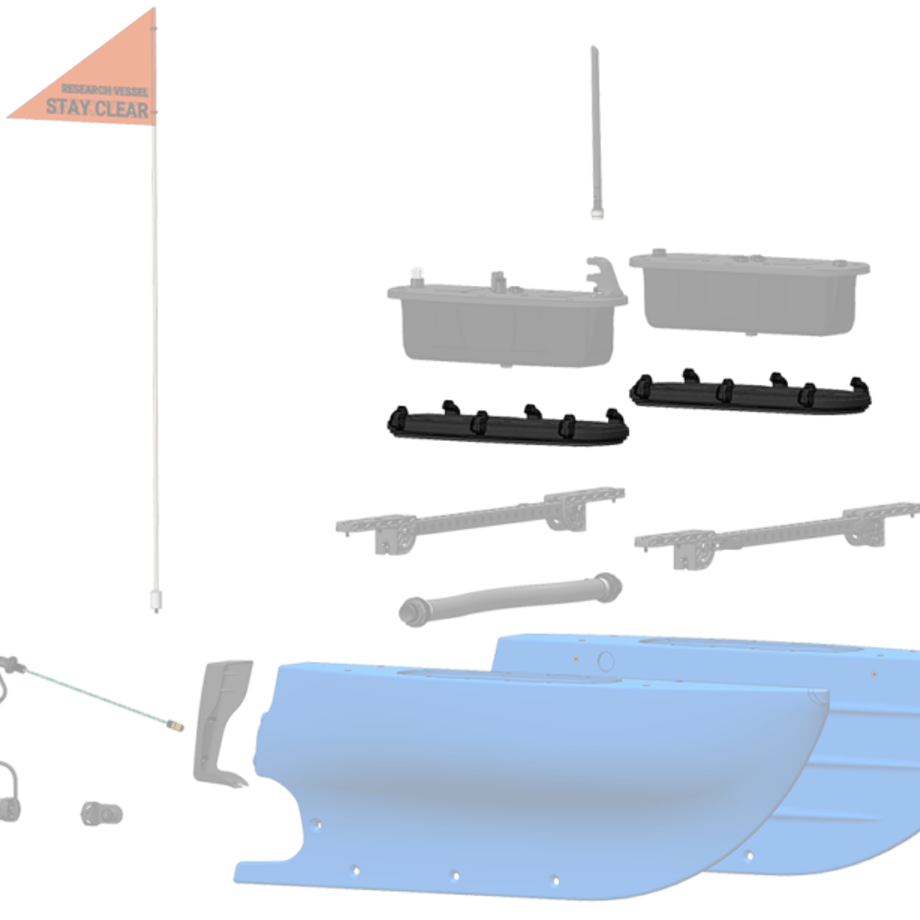

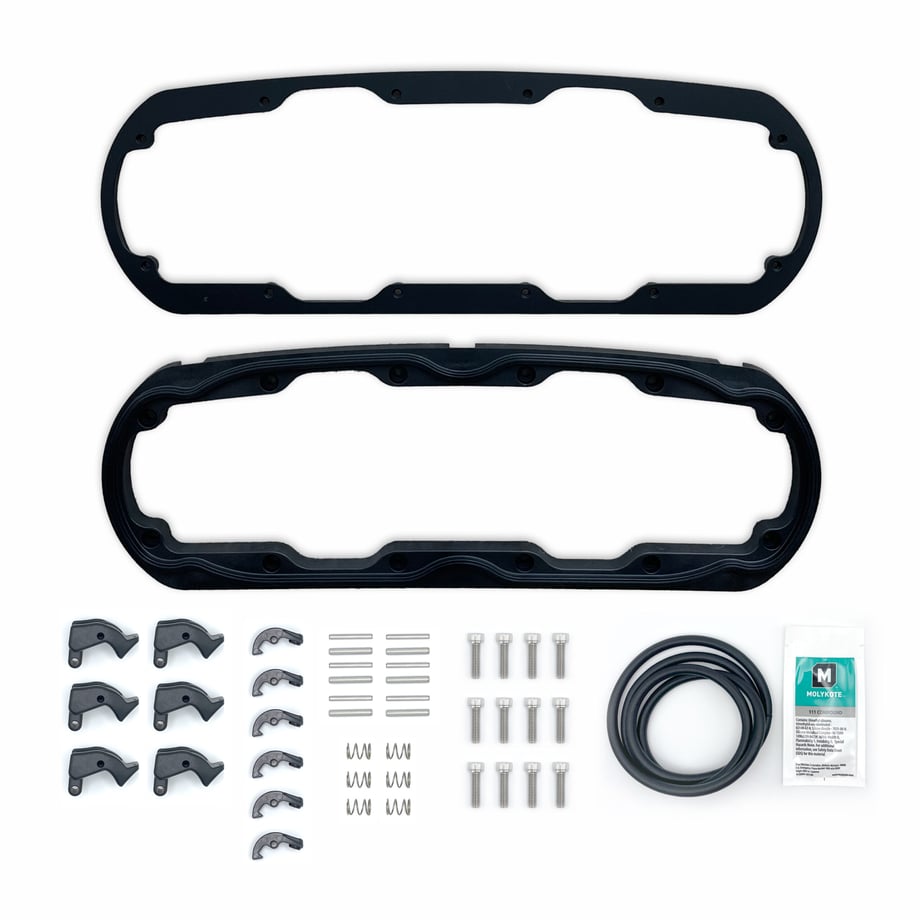

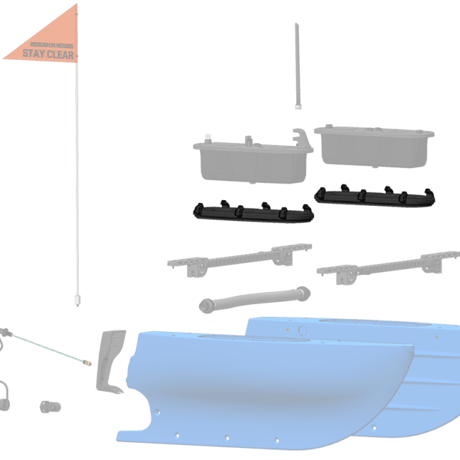

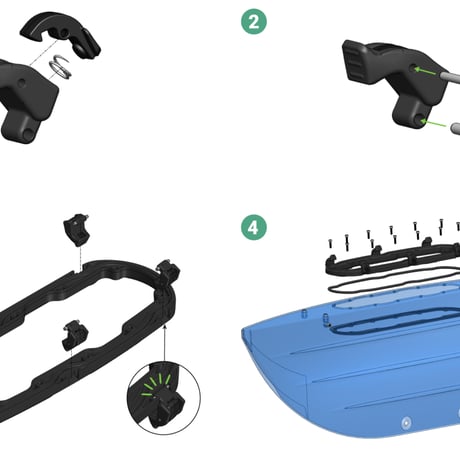

水中ドローン社公式ストアにお越しくださり、誠にありがとうございます。 <<産業用水中ドローンの国内トッププロバイダー>> “夢と感動の水中テクノロジー企業”水中ドローン社 <<米Blue Robotics社の日本における正規の販売店なのでご購入後も安心>> ※15時までのご注文確定で当日発送(日曜・祝日を除く)いたします。ご注文急増時は翌日以降の発送となる場合がございます。お急ぎの場合は電話・メールでお問い合わせください。 The Hatch Base fastens and seals to the BlueBoat Hull and is compatible with the BlueBoat Hatch Lids. It’s available for use on the BlueBoat, but can also be used on your own USV hull! Includes latches and installation hardware, but the Hatch Lids (port and starboard) are sold separately. SKU: BR-101647 HS Code: 8906.90.0090 <Product Description> This is a component of the BlueBoat. We recommend choosing components from the BlueBoat Components page to make sure you get everything you need. The BlueBoat Hatch Base and Latches are one of the parts of the boat that took the longest to develop. The Hatch Base uses a foam O-ring to seal to the hull and is held in place with the included backing plate and hardware. It’s symmetric and identical on the port and starboard sides of the boat, so you’ll need two of these for a pair of hulls. The Hatch Base is designed to fit the cutout on the top of the BlueBoat hull, but you can also cut the same shape in other USV hulls or containers to install the hatch! The backing plate can be used as a template for the required shape. The custom designed latches secure the Hatch Lid to the Hatch Base and make a satisfying click! as they are secured. <Contents> ・1 x Hatch base (BR-101279) ・1 x Hatch backing plate (BR-101334) ・1 x Hatch O-Ring ・1 x Molykote 111 6g pack ・6 x Latch body (BR-101398) ・6 x Latch clip (BR-101399) ・6 x Spring (BR-100520) ・6 x 3 mm dowel pin (BR-101626) ・6 x 4 mm dowel pin (101395) <Technical Details> - Revision History 6 February 2024 ・BR-101647 - Initial Release <Guides> BlueBoat Assembly Guide → https://bluerobotics.com/learn/blueboat-assembly/ BlueBoat Software Setup → https://bluerobotics.com/learn/blueboat-software-setup/ BlueBoat Operator’s Guide → https://bluerobotics.com/learn/blueboat-operators-guide/
