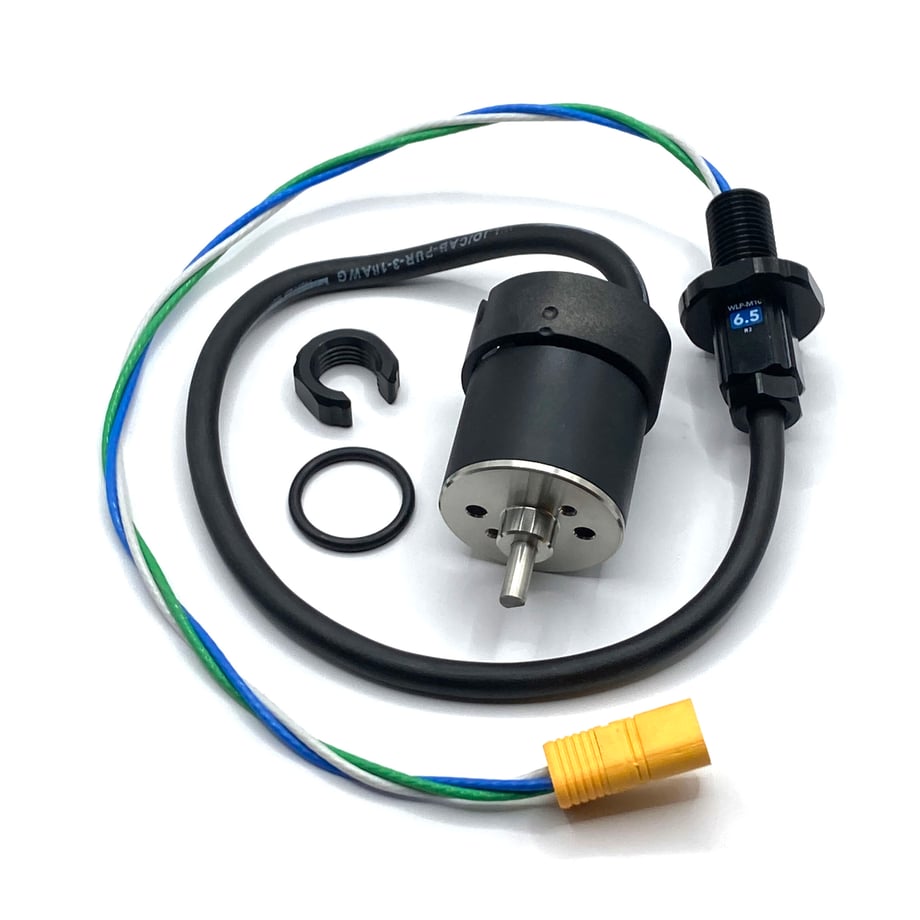

M200 モーター(BlueBoat 0.71mケーブル) - (BlueBoat - 0.71meter cable length + M14 WLP)

残り1点

29,568円

送料についてはこちら

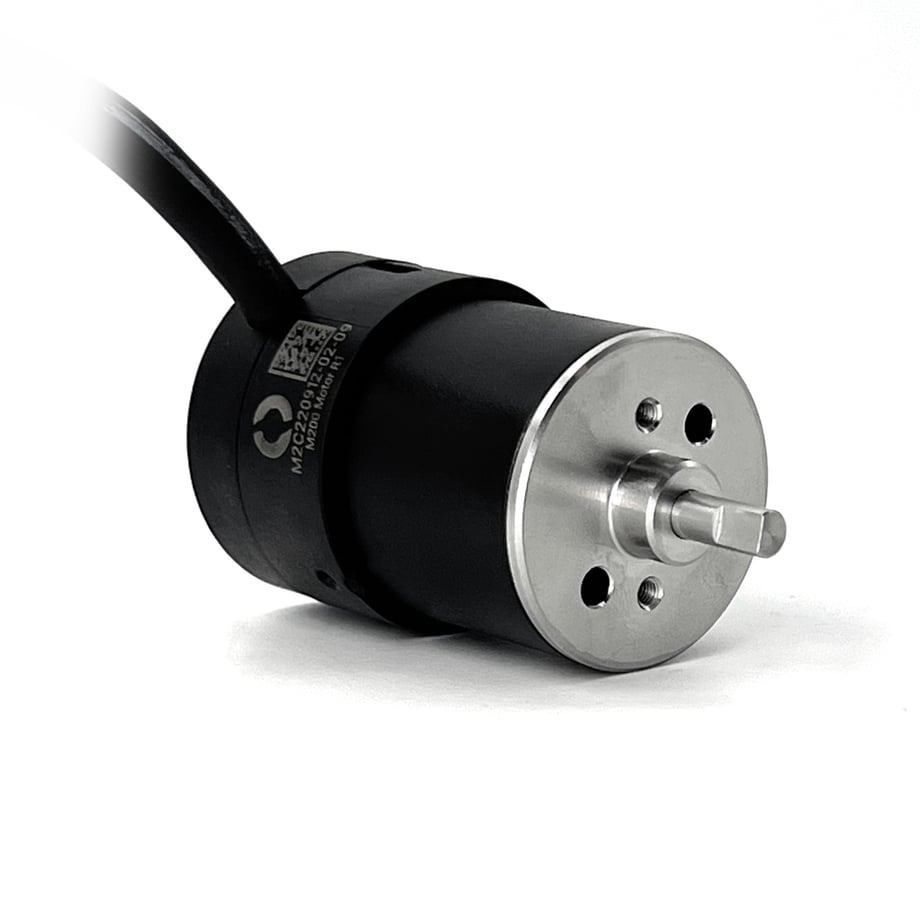

水中ドローン社公式ストアにお越しくださり、誠にありがとうございます。 <<産業用水中ドローンの国内トッププロバイダー>> “夢と感動の水中テクノロジー企業”水中ドローン社 <<米Blue Robotics社の日本における正規の販売店なのでご購入後も安心>> ※15時までのご注文確定で当日発送(日曜・祝日を除く)いたします。ご注文急増時は翌日以降の発送となる場合がございます。お急ぎの場合は電話・メールでお問い合わせください。 The M200 Motor is a subsea motor designed to run in harsh ocean conditions. It has the same performance as the T200 Thruster, but without a nozzle, making it perfect for use on USVs (like the BlueBoat), AUVs, and in custom projects such as actuators and subsea tooling. It requires a speed controller for operation. SKU: BR-101694-002 HS Code: 8501.31.4000 <Product Description> The M200 Motor is essentially the T200 Thruster, but designed to be used in more generic applications. With a propeller, it’s a great propulsor for unmanned surface vessels (USVs) and unmanned underwater vehicles (UUVs), but it can also be used to build subsea tooling, drive a gear-train, or whatever you can imagine! Check out this subsea rotary cleaning brush that we built as an example application! Like the T200 Thruster, the M200 Motor is a flooded three-phase brushless motor. The motor stator is encapsulated and electrically isolated from the water and the magnet rotor is coated and made from stainless steel to make it resistant to seawater corrosion. The motor uses high-performance water-lubricated plastic bushings and is water-cooled as water flows through the motor. The M200 Motor has a base with four M3 mounting holes to secure it in a wide range of applications. The standard version comes with a 1 meter long cable and the BlueBoat version has a shorter cable with pre-installed cable penetrator and an MT60 connector ready to install on the BlueBoat! A sensorless brushless electronic speed controller (ESC) like our Basic ESC is required to run the motor in all situations. It’s optimized to run at a voltage of 16v (such as a 4s lithium-ion battery pack), but can run at a range of voltages. Operation of the motor is identical to the thruster, so check out any of our thruster application guides for more information on how to operate the motor as well! <Contents> ・1 x M200 Motor (BlueBoat variant) ・1 x Bulkhead O-ring ・1 x M14 Nut <Technical Details> - 3D Models M200_STANDARD_BR-101376_PUBLIC (.zip) → https://cad.bluerobotics.com/M200_STANDARD_BR-101376_PUBLIC.zip M200_BB120_BR-101380_PUBLIC (.zip) → https://cad.bluerobotics.com/M200_BB120_BR-101380_PUBLIC.zip MS5837-30BA Data Sheet (.pdf) → http://www.te.com/commerce/DocumentDelivery/DDEController?Action=showdoc&DocId=Data+Sheet%7FMS5837-30BA%7FB1%7Fpdf%7FEnglish%7FENG_DS_MS5837-30BA_B1.pdf%7FCAT-BLPS0017 BAR30-SENSOR-Schematic (.pdf) → https://github.com/bluerobotics/Bar30-Pressure-Sensor/blob/master/BAR30-SENSOR-Schematic.pdf - Revision History Revision History 31 October 2023 ・BR-101694-002 - Initial Release ・20 June 2023 BR-101694-001 - Initial Release <Guides> Quick Start → https://bluerobotics.com/store/thrusters/t100-t200-thrusters/m200-motor/#tab-learn M200 Motor User Guide → https://bluerobotics.com/learn/motor-user-guide/ Making an M200 Powered Brush → https://bluerobotics.com/learn/making-an-m200-powered-brush/
